TonyPi: Hiwonder AI Intelligent Visual Humanoid Robot Powered by Raspberry Pi
- Python programming language
- High-definition camera, catch the real-time image
- Large capacity battery, long service time
- Powered by Raspberry Pi, 4B 2G and 4B 4G for your choice
- Provide PC software source code and Python source code
- Voltage display, measure the current-voltage of the robot battery
- Support PC software, phone App and VNC remote desktop control
- Product SKU: HW2019089
- Category: All Products, Best Seller, Competition Robot, Humanoid Robot, Raspberry Pi, Raspberry Pi Bionic Robot, Robotics
- Order within
TonyPi intelligent visual humanoid robot uses Raspberry Pi as the central controller. OpenCV is the image processing library, which uses Python language programming. The robot is equipped with a 2-DOF high-definition camera, which is able to realise Al image identification, colour recognition, playing soccer, visual line following and other games. It equipped with high-voltage bus servo and voltage display. Large-capacity lithium battery significantly increases the working time and built-in action group make it possible for humanoid robot do much complex motion like push-ups.
Feature
-
Large capacity battery, long working duration
-
Powered by Raspberry Pi, the powerful central controller
-
Provide PC software source code and Python source code
-
Installed high-definition camera, catch the real-time image
-
High voltage bus servo, reduce the current by more than 60%
-
Voltage display, measure the current-voltage of the robot battery
- Support PC software, phone App and VNC remote desktop control
TonyPi intelligent visual humanoid robot uses Raspberry Pi as the central controller. OpenCV is the image processing library, which uses Python language programming. The robot is equipped with a 2-DOF high-definition camera, which is able to realise Al image identification, colour recognition, playing soccer, visual line following and other games. It equipped with high-voltage bus servo and voltage display. Large-capacity lithium battery significantly increases the working time and built-in action group make it possible for humanoid robot do much complex motion like push-ups.
Feature
-
Large capacity battery, long working duration
-
Powered by Raspberry Pi, the powerful central controller
-
Provide PC software source code and Python source code
-
Installed high-definition camera, catch the real-time image
-
High voltage bus servo, reduce the current by more than 60%
-
Voltage display, measure the current-voltage of the robot battery
- Support PC software, phone App and VNC remote desktop control

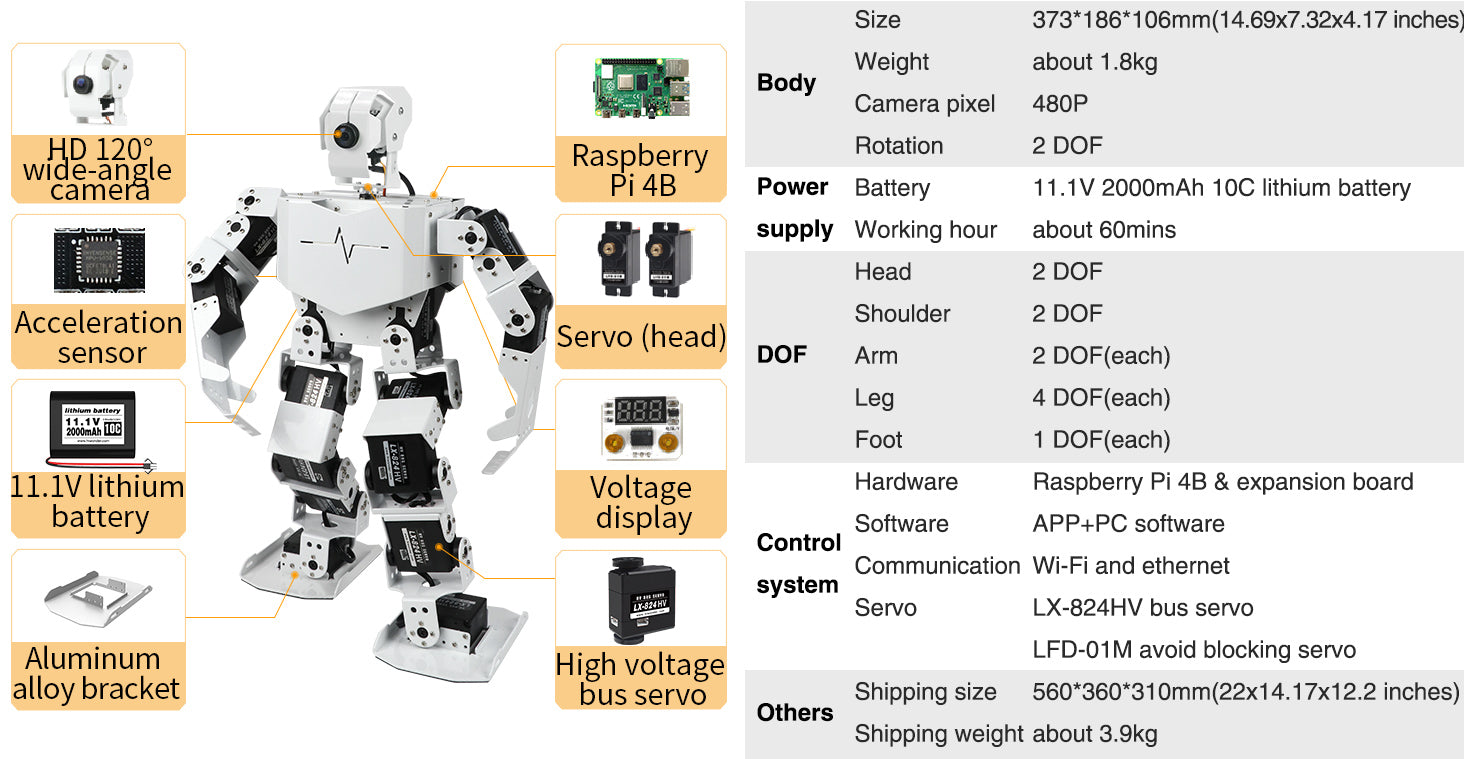

| Item | Specification |
| Raspberry Pi 4B | Processor: Broadcom BCM2711, quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz Memory: 1GB, 2GB or 4GB LPDDR4(depending on model) Connectivity: 2.4 GHz and 5.0 GHz IEEE 802.11b/g/n/ac wireless LAN, Bluetooth 5.0, BLE Gigabit Ethernet 2 × USB 3.0 ports 2 × USB 2.0 ports GPIO: Standard 40-pin GPIO header(fully backwards-compatible with previous boards) Video & Sound: 2 × micro HDMI ports (up to 4Kp60 supported) 2-lane MIPI DSI display port 2-lane MIPI CSI camera port 4-pole stereo audio and composite video port Multimedia: H.265 (4Kp60 decode) H.264 (1080p60 decode, 1080p30 encode) OpenGL ES, 3.0 graphics SD card support: Micro SD card slot for loading operating system and data storage Input power: 5V DC via USB-C connector (minimum 3A) 5V DC via GPIO header (minimum 3A) Power over Ethernet (PoE)–enabled(requires separate PoE HAT) Environment: Operating temperature 0–50ºC
|

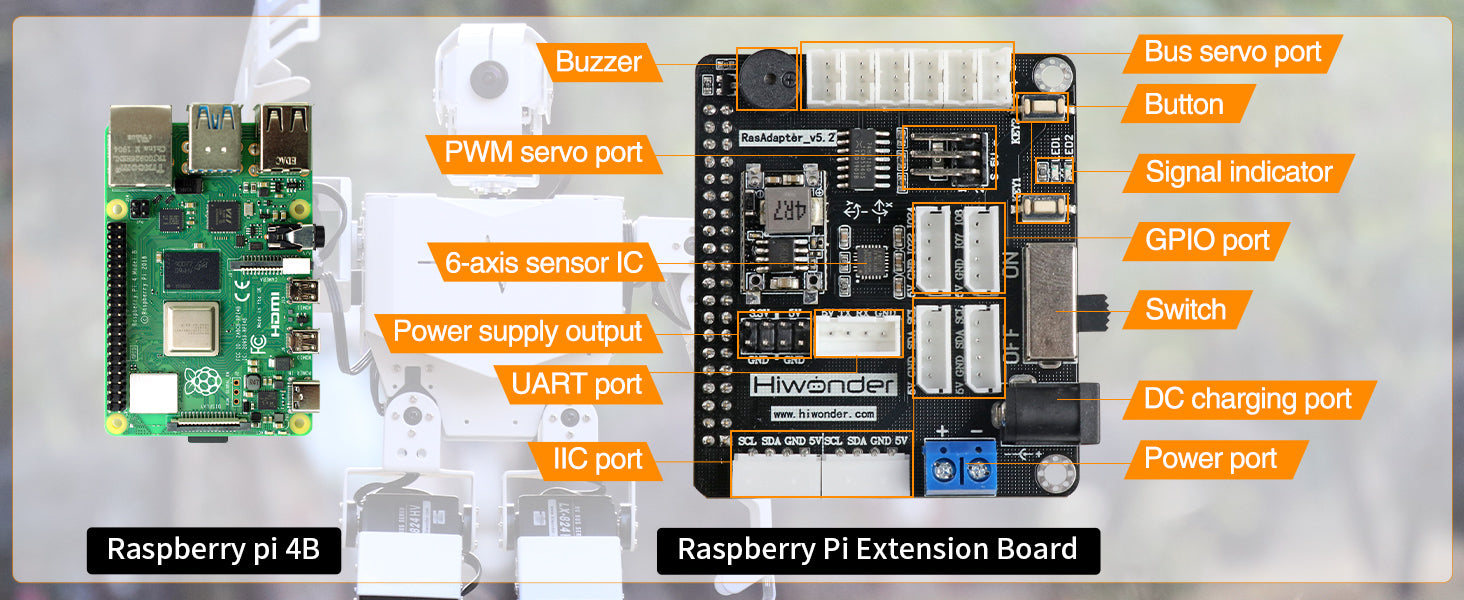

| Raspberry Pi Extension Board | The built-in over-current protection of 8 channel PWM port prevents the servo from damage. Built-in single bus serial electric circuit can directly control the serial servo Two-channel programmable LED lights, clearly show the working status of the system Two-channel programmable buttons for more conveniently setting the system Reserved IIC and UART ports, which can be compatible with various sensors |
| Servo | LX-824 three-port bus servo |
| Power Supply | 11.1 V 2000mAh lithium battery |
| Product Weight | 1.7 kg |
| Working Hours | about 60min |
| Package List(Finished Parts) |
1* robot frame 16* LX-824HV three-port bus servo 1* Raspberry Pi(4B 2G/4B 4G) 1* Raspberry Pi extension board 2* LFD-01 servo 1* Raspberry Pi Acrylic fixing plate 1* HD camera 1* 11.1 V 2000mAh lithium battery 1* voltage display module 1* camera head frame 1* pack of accessories 1* power charger 1* servo wire 1* screwdriver |
