Hiwonder LX-824 Intelligent Three-Connectors Serial Bus Servo with Powerful Feedback Functions
Rated 3.5/5 based on 11 customer reviews
Hiwonder LX-824 Intelligent Three-Connectors Serial Bus Servo with Powerful Feedback Functions

Hiwonder LX-824 Intelligent Three-Connectors Serial Bus Servo with Powerful Feedback Functions

  • Serial bus servo connector to connect the servo one by one
  • High-precision potentiometer to feedback the angle position
  • Equipped with position/temperature/voltage feedback
  • Support two working mode: Servo mode and Gear motor mode
  • 17KG large torque.Dual ball bearing
  • Order within
Available: In Stock
$21.50
Wishlist Compare
Hiwonder LX-824 servo/motor is a serial bus servo with three connectors. The servo can be connected in series, simplifying the wire connection. LX-824 servo can be used in different bionic robot joints.



 Feature

  • Use serial bus servo connector to connect the servo one by one, beautify the looking and facilitate the wiring.

  • Use high-precision potentiometer to feedback the angle position.

  • Equipped with position/temperature/voltage feedback, protect the servo from burning.

  • Support two working mode: Servo mode ( rotation range: 0-240) and Gear motor mode ( rotation range: 0-360)

  • Use metal gear to extend the service time.

  • 17KG large torque.Dual ball bearing: one is the driving ball bearing, the other is the assistant ball bearing.


This product: Hiwonder LX-824 Intelligent Three-Connectors Serial Bus Servo with Powerful Feedback Functions
$21.50 2150
Serial Bus Servo Controller: Hiwonder Serial Bus Servo Controller Communication Tester
$28.99 2899
Hiwonder TTL / USB Debugging Board
$12.99 1299
$63.48
Hiwonder LX-824 servo/motor is a serial bus servo with three connectors. The servo can be connected in series, simplifying the wire connection. LX-824 servo can be used in different bionic robot joints.



 Feature

  • Use serial bus servo connector to connect the servo one by one, beautify the looking and facilitate the wiring.

  • Use high-precision potentiometer to feedback the angle position.

  • Equipped with position/temperature/voltage feedback, protect the servo from burning.

  • Support two working mode: Servo mode ( rotation range: 0-240) and Gear motor mode ( rotation range: 0-360)

  • Use metal gear to extend the service time.

  • 17KG large torque.Dual ball bearing: one is the driving ball bearing, the other is the assistant ball bearing.


Item

Specification

Weight

57g(2.02OZ)

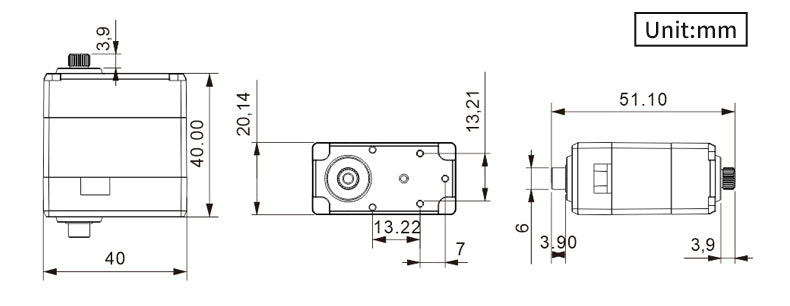

Dimension

40.00mm*20.14mm*51.10mm(1.57inch*0.8inch*2.02inch)

Speed

0.20sec/60°(7.4V)

Accuracy

0.3°

Torque

17 kg·cm (236 oz·in) @7.4V

Working Voltage

6-8.4V

MIn Working Current

1A

No-load Current

100mA

Stall Current

2.4~3A

Cornor Range Control

0~1000 correspond to 0°~240°

Serial Command Control Method

serial command

Communication Baud Rate

115200

Servo ID

0~253,user configurable,default ID 1

Data Feedback

Temperature; voltage; location

Save Setting

Save data when the power off

Features  Stall protection

Overheat Protection

Supporting Readback Function

Support

Default Wire

20cm(7.9inch) in length

Package List

1* bus servo
1* 20cm servo wire
1* primary servo horn(4mm/0.157in thick)
1* assistant servo horn(2mm/0.078in thick)
15* M2*5 self-tapping screws
