Hiwonder LX-224 Serial Bus Servo with Three Connectors /20KG Large Torque
- Serial bus servo connector to connect the servo one by one
- High-precision potentiometer to feedback the angle position
- Equipped with position/temperature/voltage feedback
- Support two working mode: Servo mode and Gear motor mode
- 20KG large torque.Dual ball bearing
- Product SKU: HW2019048
- Category: All Products, All Products, Bus Servo, Servo
- Order within

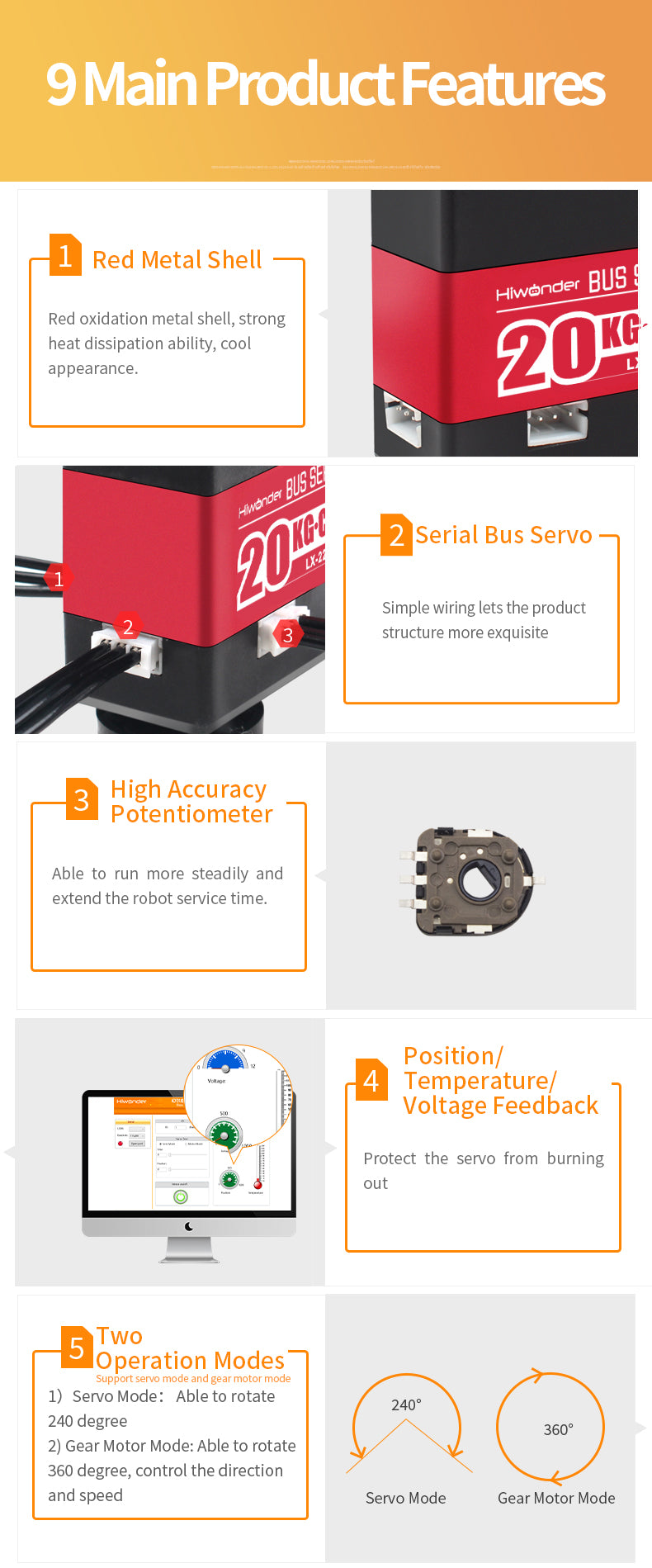

Feature
-
Use serial bus servo connector to connect the servo one by one, beautify the looking and facilitate the wiring.
-
Use high-precision potentiometer to feedback the angle position.
-
Equipped with position/temperature/voltage feedback, protect the servo from burning.
-
Support two working mode: Servo mode ( rotation range: 0-240) and Gear motor mode ( rotation range: 0-360).
-

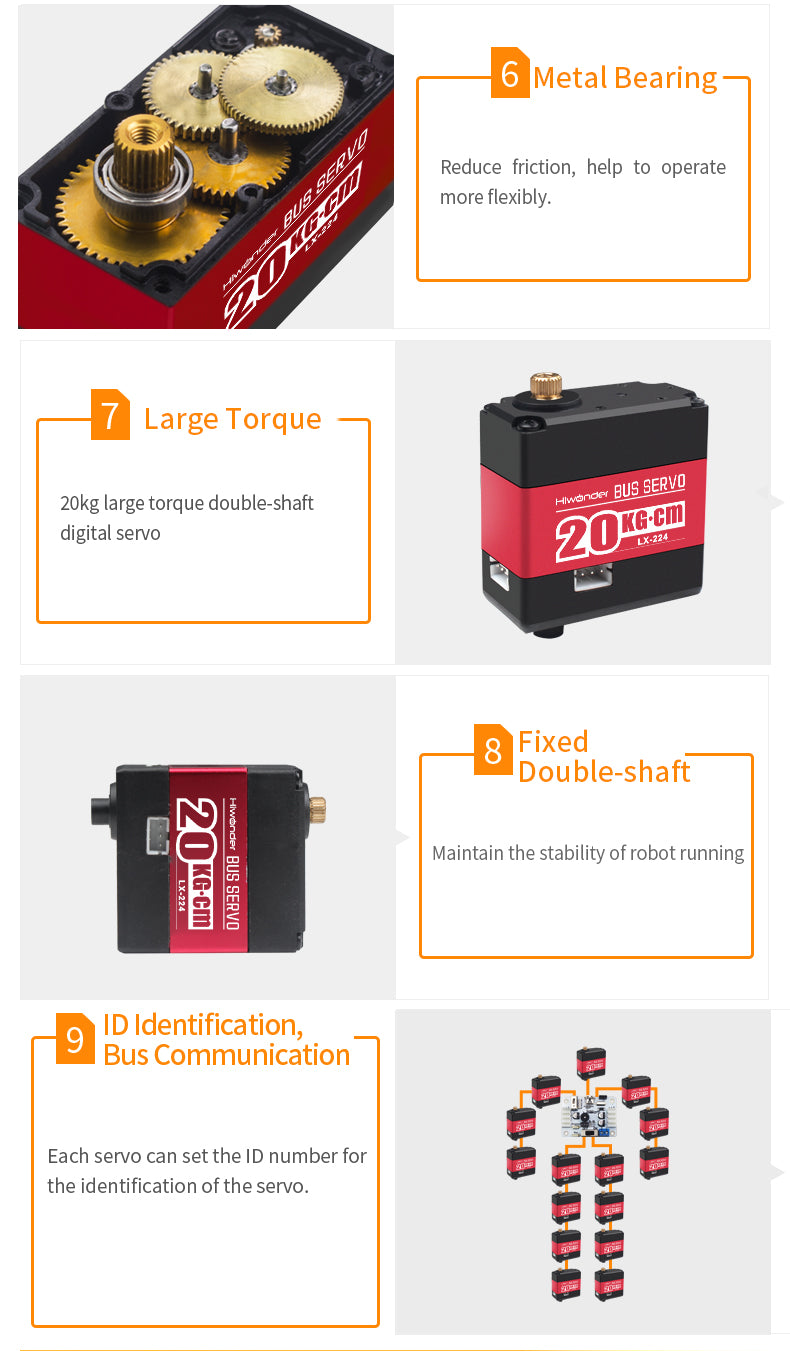

Use metal gear to extend the service time.
-
20KG large torque.Dual ball bearing: one is the driving ball bearing, the other is the assistant ball bearing.
Feature
-
Use serial bus servo connector to connect the servo one by one, beautify the looking and facilitate the wiring.
-
Use high-precision potentiometer to feedback the angle position.
-
Equipped with position/temperature/voltage feedback, protect the servo from burning.
-
Support two working mode: Servo mode ( rotation range: 0-240) and Gear motor mode ( rotation range: 0-360).
-
Use metal gear to extend the service time.
-
20KG large torque.Dual ball bearing: one is the driving ball bearing, the other is the assistant ball bearing.
|
Item |
Specification |
|
Weight |
63g(2.2OZ) |
|
Dimension |
40.00mm*20.14mm*51.10mm(1.57inch*0.8inch*2.02inch) |
|
Speed |
0.20sec/60°(7.4V) |
|
Accuracy |
0.3° |
|
Torque |
20 kg·cm (236 oz·in) @7.4V |
|
Working Voltage |
6-8.4V |
|
MIn Working Current |
1A |
|
No-load Current |
100mA |
|
Stall Current |
2.4~3A |
|
Cornor Range Control |
0~1000 correspond to 0°~240° |
|
Serial Command Control Method |
serial command |
|
Communication Baud Rate |
115200 |
|
Servo ID |
0~253,user configurable,default ID 1 |
|
Data Feedback |
Temperature; voltage; location |
|
Save Setting |
Save data when the power off |
|
Features Stall protection |
Overheat Protection |
|
Supporting Readback Function |
Support |
|
Default Wire |
20cm(7.9inch) in length |
|
Package List |
1* bus servo |
|
|
|
