Hiwonder LX-224HV Three Connectors Bus High Voltage Servo
Rated 3.5/5 based on 11 customer reviews
Hiwonder LX-224HV Three Connectors Bus High Voltage Servo
Bus Servo

Hiwonder LX-224HV Three Connectors Bus High Voltage Servo

  • User-friendly ports
  • Extra-long battery life
  • High precision digital servo
  • Support phone, handle and computer control
  • Integrated structure sinificantly strengthen the robot body
  • Order within
Available: In Stock
$21.99
Wishlist Compare
Product Description
Hiwonder LX-224HV high voltage servo is a serial bus servo with three connectors. Compared with the traditional 7.4V servo, the 11.1V high-voltage servo can reduce the current by more than 60% which can be connected in series.
Feature
  • Use serial bus servo connector to connect the servo one by one which facilitates the wiring
  • Internal high precision potentiometer supports angle feedback
  • Significantly reduce the power consumption and increase service time
  • Support position/temperature/voltage feedback, protect the servo from burning
  • Two working mode: Servo mode ( rotation range: 0-240) and Gear motor mode ( rotation range: 0-360)
  • Use metal gear to extend the service time
Clean Wiring
There are 3 ports for you to connect which makes the project have clean wiring and beautiful outlook.
Red Metal Middle Shell
Serial Bus Servo
High Voltage Servo More Power Saving
Temperature/Voltage Feedback /RGB Indicator
High Accuracy Potentiometer
Metal Gear
2 Operation Modes
Fixed Double-shaft
Strong Torque
ID ldentification, Bus Communication
Fixed Double-shaft
Strong Torque
2 Operation Modes
ID ldentification, Bus Communication
Servo Debugging System
In Debugging system, you can set ID number, working mode, rotation speed, position deviation, LED light, temperature alarm and voltage alarm for servos.
Application
High voltage bus servos are used in SpiderPi for stable and better performance! Compatible with Hiwonder double-shaft servo brackets.
Packing List
1* LX-224HV high voltage bus servo 1* Main servo horn
1* Assistant servo horn 1* Servo wire
15*Self tapping screw 2* Main assistant screw
Packing List
1* LX-224HV high voltage bus servo
1* Assistant servo horn
15*Self tapping screw
1* Main servo horn
1* Servo wire
2* Main assistant screw
This product: Hiwonder LX-224HV Three Connectors Bus High Voltage Servo
$21.99 2199
Serial Bus Servo Controller: Hiwonder Serial Bus Servo Controller Communication Tester
$28.99 2899
Hiwonder TTL / USB Debugging Board
$12.99 1299
$63.97
Product Description Hiwonder LX-224HV high voltage servo is a serial bus servo with three connectors. Compared with the traditional 7.4V servo, the 11.1V high-voltage servo can reduce the current by more than 60% which can be connected in series. Feature
  • Use serial bus servo connector to connect the servo one by one which facilitates the wiring
  • Internal high precision potentiometer supports angle feedback
  • Significantly reduce the power consumption and increase service time
  • Support position/temperature/voltage feedback, protect the servo from burning
  • Two working mode: Servo mode ( rotation range: 0-240) and Gear motor mode ( rotation range: 0-360)
  • Use metal gear to extend the service time
Clean Wiring There are 3 ports for you to connect which makes the project have clean wiring and beautiful outlook. Red Metal Middle Shell Serial Bus Servo High Voltage Servo More Power Saving Temperature/Voltage Feedback /RGB Indicator High Accuracy Potentiometer Metal Gear 2 Operation Modes Fixed Double-shaft Strong Torque ID ldentification, Bus Communication Fixed Double-shaft Strong Torque 2 Operation Modes ID ldentification, Bus Communication Servo Debugging System In Debugging system, you can set ID number, working mode, rotation speed, position deviation, LED light, temperature alarm and voltage alarm for servos. Application High voltage bus servos are used in SpiderPi for stable and better performance! Compatible with Hiwonder double-shaft servo brackets. Packing List
1* LX-224HV high voltage bus servo 1* Main servo horn
1* Assistant servo horn 1* Servo wire
15*Self tapping screw 2* Main assistant screw
Packing List 1* LX-224HV high voltage bus servo
1* Assistant servo horn
15*Self tapping screw
1* Main servo horn
1* Servo wire
2* Main assistant screw
Item Specification
Weight 62g

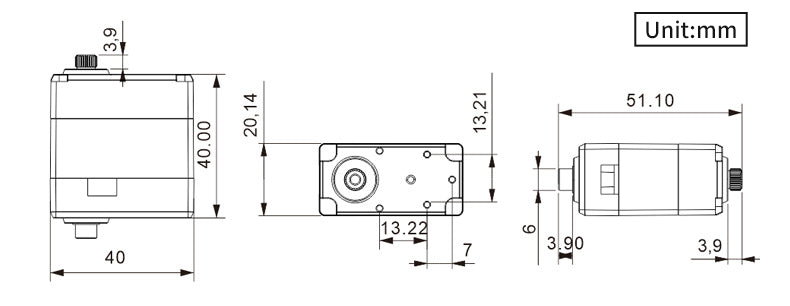

Dimension 40mm*20.14mm*51.10mm(1.57inch*0.8inch*2.02inch)
Speed 0.18sec/60°(11.1V)
Accuracy 0.24°
Torque 20kg.cm/11.1V
Nominal Voltage 11.1V
Working Voltage 9-12.6V

No-load Current

100mA

Stall Current

1.7~2A

Cornor Range Control

0~1000 correspond to 0°~240°

Serial Command Control Method

serial command

Communication Baud Rate

115200

Servo ID

0~253,user configurable,default ID 1

Data Feedback

 Temperature; voltage; location

Save Setting

 Save data when the power off

Features  Stall protection

Overheat Protection
Default Wire 20cm(7.9inch) in length
LX-224HV Servo Package List 1* LX-224HV bus servo
1* 20cm servo wire
1* primary servo horn(4mm/0.157in thick)
1* assistant servo horn(2mm/0.078in thick)
15* M2*5 self-tapping screws
2* primary assistant screws
