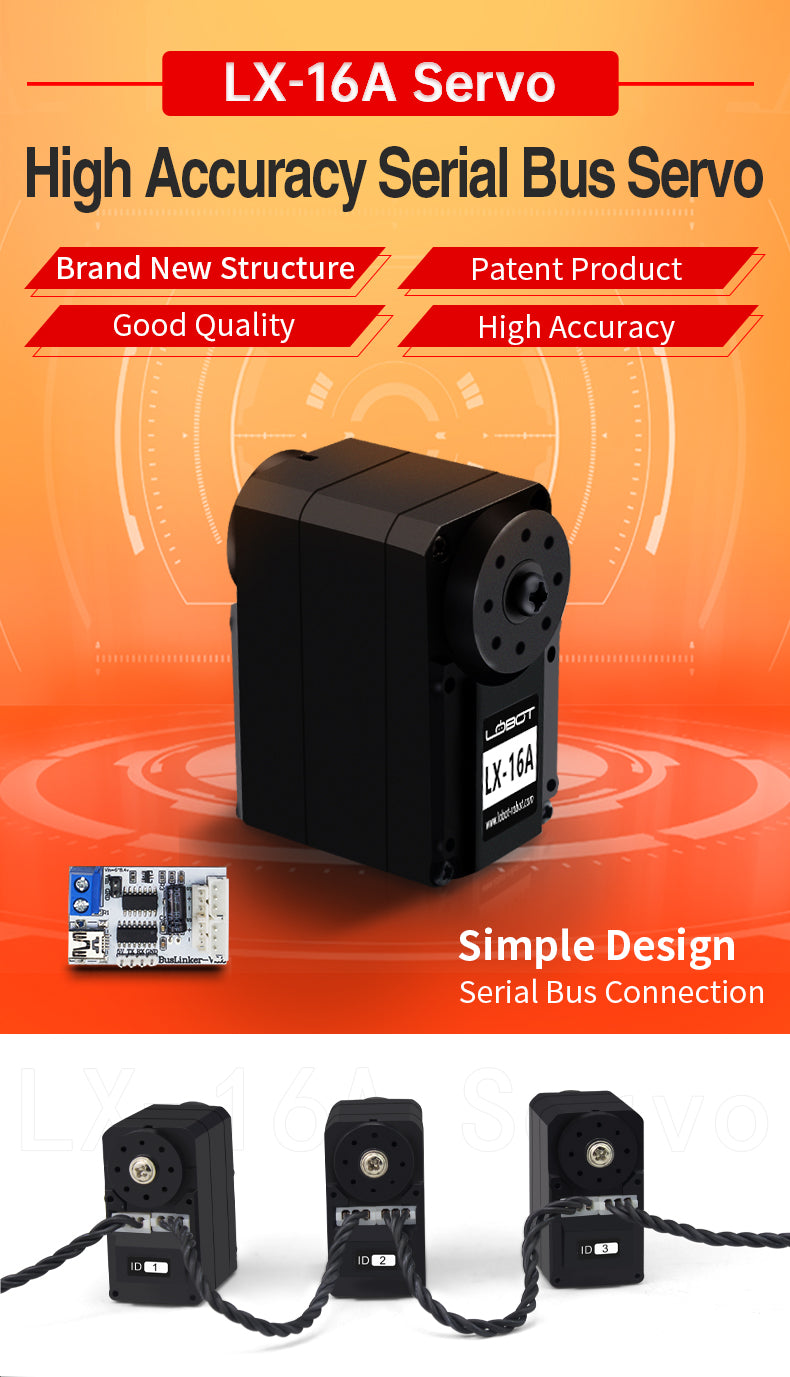

Hiwonder LX-16A Full Metal Gear Serial Bus Servo with Real-Time Feedback Function for RC Robot( Control Angle 240)
Rated 3.5/5 based on 11 customer reviews
Hiwonder LX-16A Full Metal Gear Serial Bus Servo with Real-Time Feedback Function for RC Robot( Control Angle 240)

Hiwonder LX-16A Full Metal Gear Serial Bus Servo with Real-Time Feedback Function for RC Robot( Control Angle 240)

  • 17kg large torque. 15 kg/cm (208 oz/in) 6.6V
  • 17 kg/cm (236 oz/in) 7.4V
  • Real-time feedback function of position, temperature, voltage
  • Full metal gear
  • Dual ball bearing
  • High-precision potentiometer to feedback the angle position
  • Order within
Available: In Stock
$19.99
Wishlist Compare
This product: Hiwonder LX-16A Full Metal Gear Serial Bus Servo with Real-Time Feedback Function for RC Robot( Control Angle 240)
$19.99 1999
Serial Bus Servo Controller: Hiwonder Serial Bus Servo Controller Communication Tester
$28.99 2899
Hiwonder TTL / USB Debugging Board
$12.99 1299
$61.97
Hiwonder LX-16A is a full metal gear serial bus servo with 17kg high torque. It can provide temperature, position feedback. LX-16A Bus Servo uses our private serial protocol so that it is necessary to use our TTL/USB debug board(compatible for Arduino) to control bus servo.
( Notes: The debug board required to purchase separately from ours. You only need one debug board no matter how many servos you control.)



 Feature

  • 17kg large torque. 15 kg/cm (208 oz/in) 6.6V; 17 kg/cm (236 oz/in) 7.4V. We provide communication protocol and detailed video tutorials.

  • Real-time feedback function of position, temperature, voltage. The top of the servo has a warning The indicator will blink if overcurrent, over-temperature or locked-rotor occurs.

  • Full metal gear. Improve servo’s accuracy and extend its service time.

  • Dual ball bearing: one is the driving ball bearing, the other is the assistant ball bearing(support role).

  • Use high-precision potentiometer in the new design. Accuracy and linearity have been greatly improved! Accurate movement can help you build up robots.

  • The control board uses I/O port to connect the serial servo, servos are connected in series through a dual interface, which reduces the use of serial ports. Simple wiring makes the product more exquisite and attractive.

Hiwonder LX-16A is a full metal gear serial bus servo with 17kg high torque. It can provide temperature, position feedback. LX-16A Bus Servo uses our private serial protocol so that it is necessary to use our TTL/USB debug board(compatible for Arduino) to control bus servo.
( Notes: The debug board required to purchase separately from ours. You only need one debug board no matter how many servos you control.)



 Feature

  • 17kg large torque. 15 kg/cm (208 oz/in) 6.6V; 17 kg/cm (236 oz/in) 7.4V. We provide communication protocol and detailed video tutorials.

  • Real-time feedback function of position, temperature, voltage. The top of the servo has a warning The indicator will blink if overcurrent, over-temperature or locked-rotor occurs.

  • Full metal gear. Improve servo’s accuracy and extend its service time.

  • Dual ball bearing: one is the driving ball bearing, the other is the assistant ball bearing(support role).

  • Use high-precision potentiometer in the new design. Accuracy and linearity have been greatly improved! Accurate movement can help you build up robots.

  • The control board uses I/O port to connect the serial servo, servos are connected in series through a dual interface, which reduces the use of serial ports. Simple wiring makes the product more exquisite and attractive.

Item

Specification

Weight

52g(1.8oz)

Dimension

1.78inch*0.97inch*1.38inch

Speed

0.18sec/60°@6V; 0.16sec/60°@7.4V

Servo Accuracy

0.24°

Torque

15 kg/cm (208 oz/in) @6.6V; 17 kg/cm (236 oz/in) @7.4V

Minimum Working Current

1A

Servo ID

0~253

Storage Users' Parameter setting After Power Off

support

Control Method

serial command

Communication Baud Rate

115200

Package List

1* bus servo
2* servo horn
1* main screw
1* deputy screw
15* M2*4 self-tapping screw
1* 20cm(7.87inch) servo Wire

Important Notes

  • Please make sure to avoid locked-rotor when using a servo, because it may burn out in the using process.

  • The locked-rotor will cause internal current increase to more than 7 times as well as the temperature.
