Hiwonder LD-27MG Full Metal Gear Digital Servo with 270 Control Angle, Aluminium Case for Robot RC Car
Rated 3.5/5 based on 11 customer reviews
Hiwonder LD-27MG Full Metal Gear Digital Servo with 270 Control Angle, Aluminium Case for Robot RC Car
Hiwonder

Hiwonder LD-27MG Full Metal Gear Digital Servo with 270 Control Angle, Aluminium Case for Robot RC Car

  • 20KG large torque. 20 kg·cm (277.6 oz·in) @ 6.6V
  • Full metal gear
  • Aluminium case
  • Use high-precision potentiometer with new design
  • 270 degree rotation.
  • Order within
Available: In Stock
$24.00
Wishlist Compare
This product: Hiwonder LD-27MG Full Metal Gear Digital Servo with 270 Control Angle, Aluminium Case for Robot RC Car
$24.00 2400
Single Shaft Servo Frame: Compatible with Hiwonder Single Shaft Servo
$11.99 1199
Hiwonder 6 Channel Digital Servo Tester with Over-Current Protection
$18.00 1800
$53.99

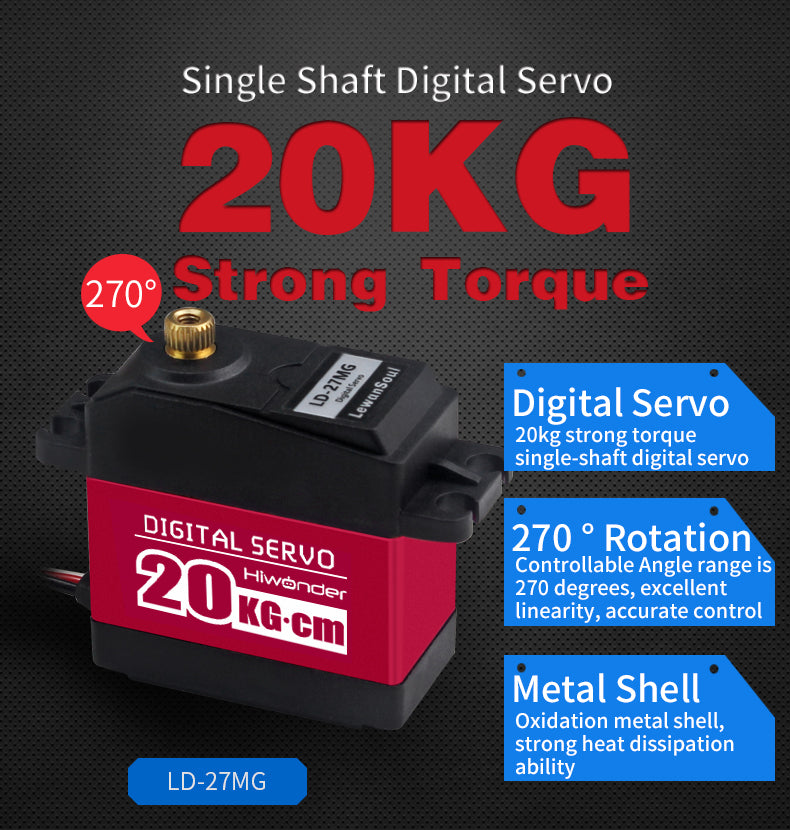

Hiwonder LD-27MG is a full metal gear standard digital servo with 20kg large torque, using aluminum case for Robotic RC Car with control angle 270 degrees.

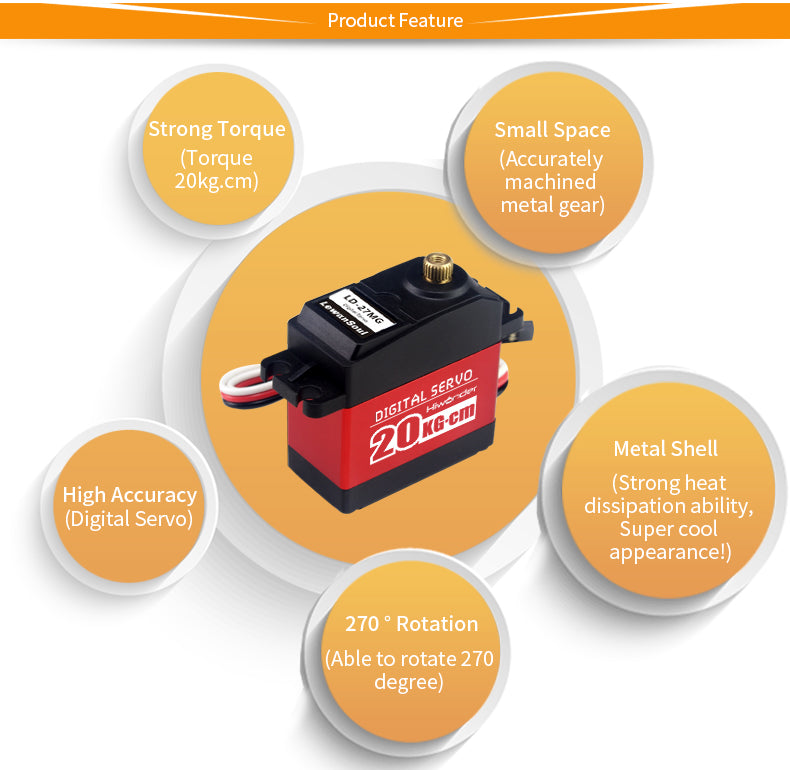

 Feature

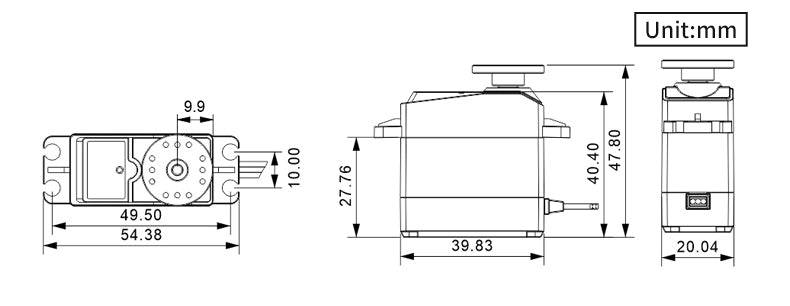

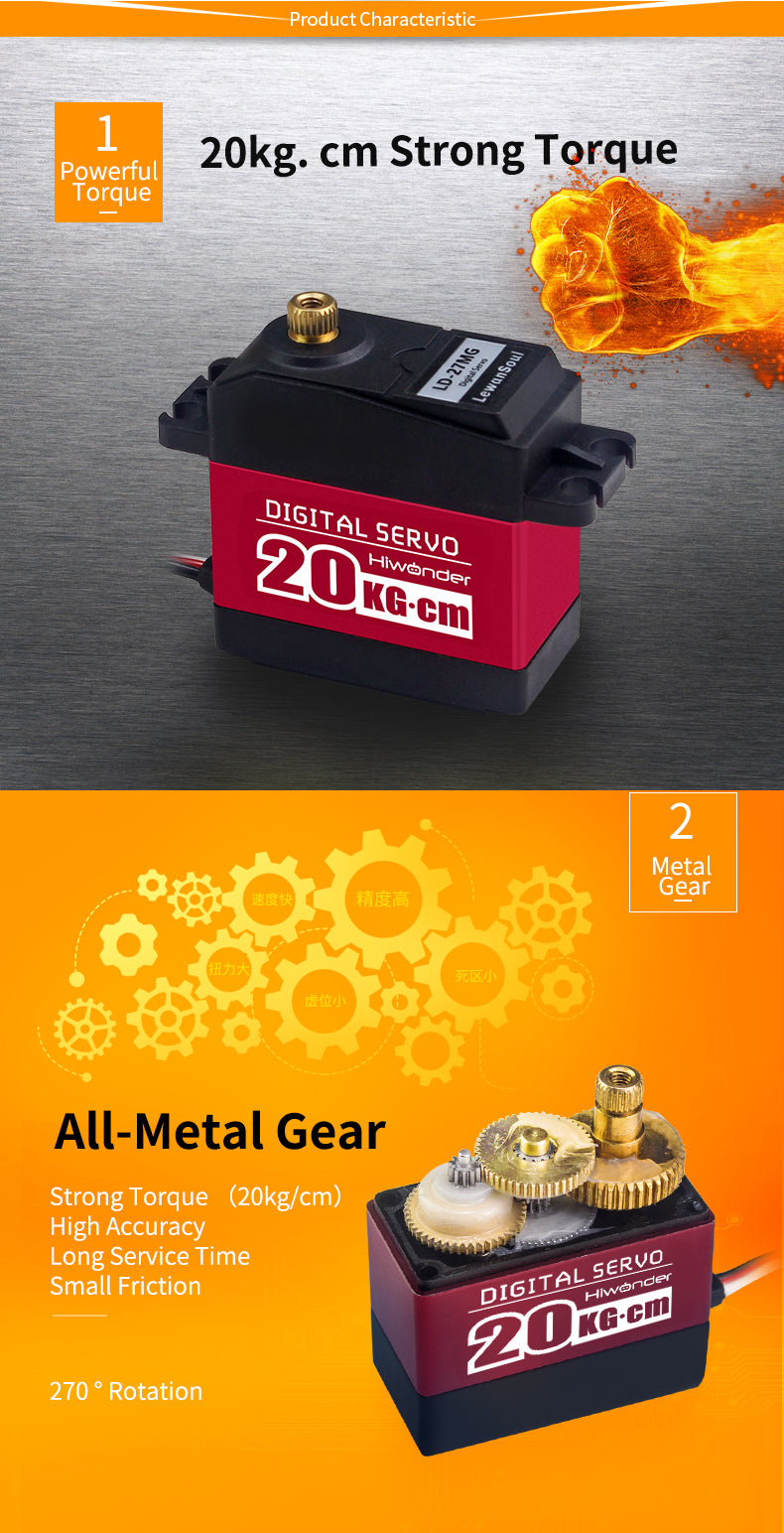

  • 20kg large torque. 20 kg·cm (277.6 oz·in) @ 6.6V. Dimension: 40mm*20mm*40.5mm(1.57inch*0.78inch*1.59inch).

  • Full metal gear. Improve servo’s accuracy and extend its service time.

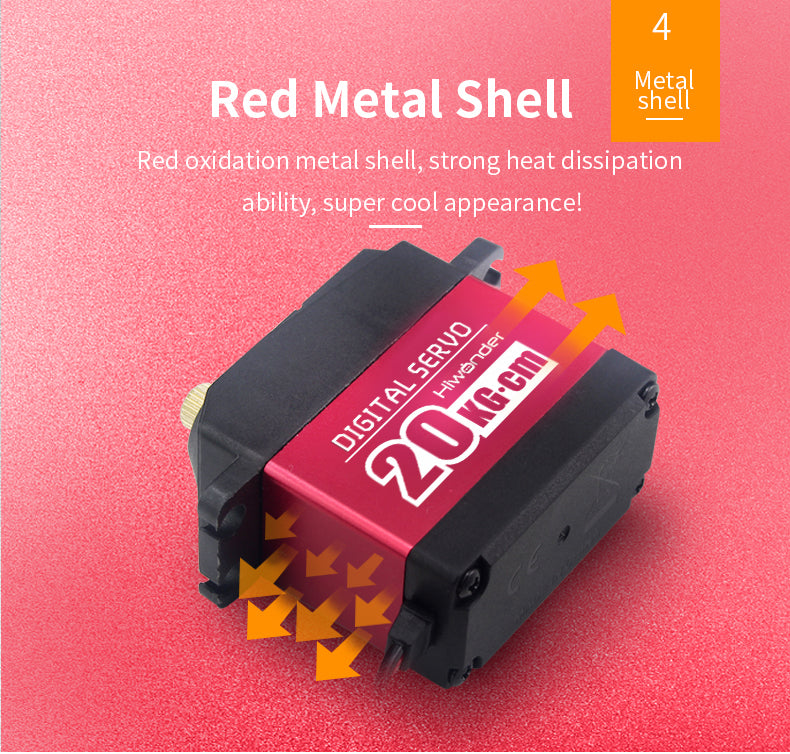

  • Aluminum Case enhances heat dissipation and ensures servo motor work properly.

  • Use high-precision potentiometer with a new design. Accuracy and linearity have been greatly improved! Accurate movement can help you build up robots.

  • 270 degrees rotation. Controllable angle range from 0 to 270 degrees, excellent linearity, precision control. It can rotate within 360 degrees when power off.

Hiwonder LD-27MG is a full metal gear standard digital servo with 20kg large torque, using aluminum case for Robotic RC Car with control angle 270 degrees.



 Feature

  • 20kg large torque. 20 kg·cm (277.6 oz·in) @ 6.6V. Dimension: 40mm*20mm*40.5mm(1.57inch*0.78inch*1.59inch).

  • Full metal gear. Improve servo’s accuracy and extend its service time.

  • Aluminum Case enhances heat dissipation and ensures servo motor work properly.

  • Use high-precision potentiometer with a new design. Accuracy and linearity have been greatly improved! Accurate movement can help you build up robots.

  • 270 degrees rotation. Controllable angle range from 0 to 270 degrees, excellent linearity, precision control. It can rotate within 360 degrees when power off.

Item

Specification

Weight

65g(2.32OZ)

Dimension

40mm*20mm*40.5mm(1.57inch*0.78inch*1.59inch)

Speed

0.16sec/60°(7.4V)

Torque

20 kg·cm (277.6 oz·in) @6.6V

Working Voltage

6-7.4V

Min Working Current

1A

No-Load Current

100mA

Spline

25T(6mm in diameter)

Servo Wire

30cm(11.8inch) in length

Control Method

PWM

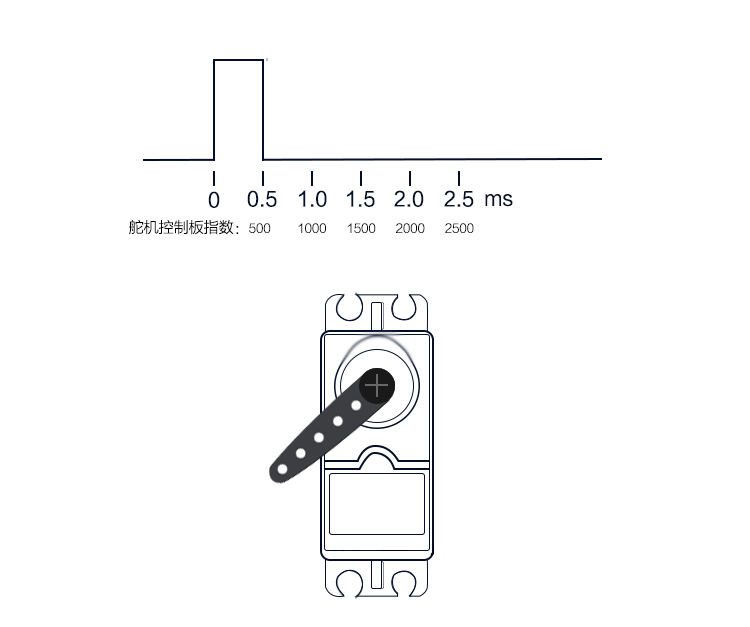

Pulse Width

500~2500

Duty Ratio

0.5ms~2.5ms

Pulse Period

20ms

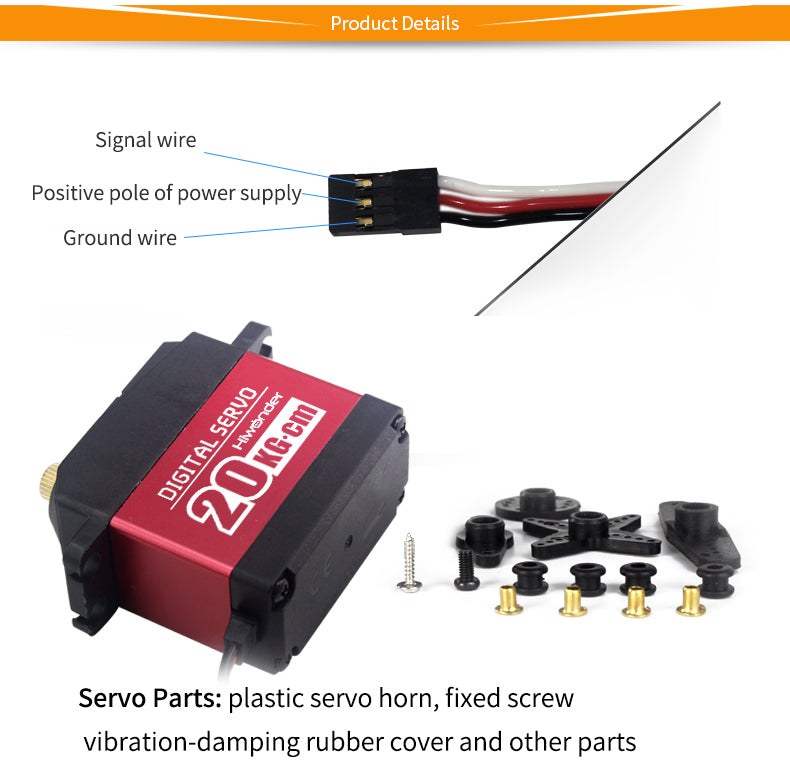

Wire Layout

red wire: +
black wire: GND
white wire: PWM/signal

Package List

1* digital servo
1* screw horn kit

Please make sure that the duty cycle of the controller you used is confirmed to our specifications, otherwise the servo can't turn up to a claimed degree.



Important Tips

  • Recommend to use lithium polymer battery with high rate discharge(min 5C), please don't use the dry battery.

  • Please use a short and thick power cord, don't use Dupont cord.
