Hiwonder LX-20S Serial Bus Servo/20KG High Torque/Position Feedback
Rated 3.5/5 based on 11 customer reviews
Hiwonder LX-20S Serial Bus Servo/20KG High Torque/Position Feedback

Hiwonder LX-20S Serial Bus Servo/20KG High Torque/Position Feedback

  • Single shaft serial bus intelligent servo
  • 20kg Strong Torque with metal gear
  • Equipped with position/temperature/voltage feedback
  • User-friendly connector
  • Order within
Available: In Stock
$17.99
Wishlist Compare
Product Description
This three connectors serial bus smart servo possess 20KG torque and adopts all-metal gears inside, strong and durable. It can be controlled by serial port commands, connected multiple servos at the same time, which can help us create robotic arms and bionic robots. Compared with ordinary servos on the market, it can reading back the angle and faceback voltage, temperature position parameter.
Feature
  • Equipped with position/temperature/voltage feedback, protect the servo from burning
  • With the TTL/USB debugging board, you can set the servo through the provided PC software
  • High-precision potentiometer for more stable operation
  • Provide bus servo communication protocol, 51, Arduino and STM32 source code

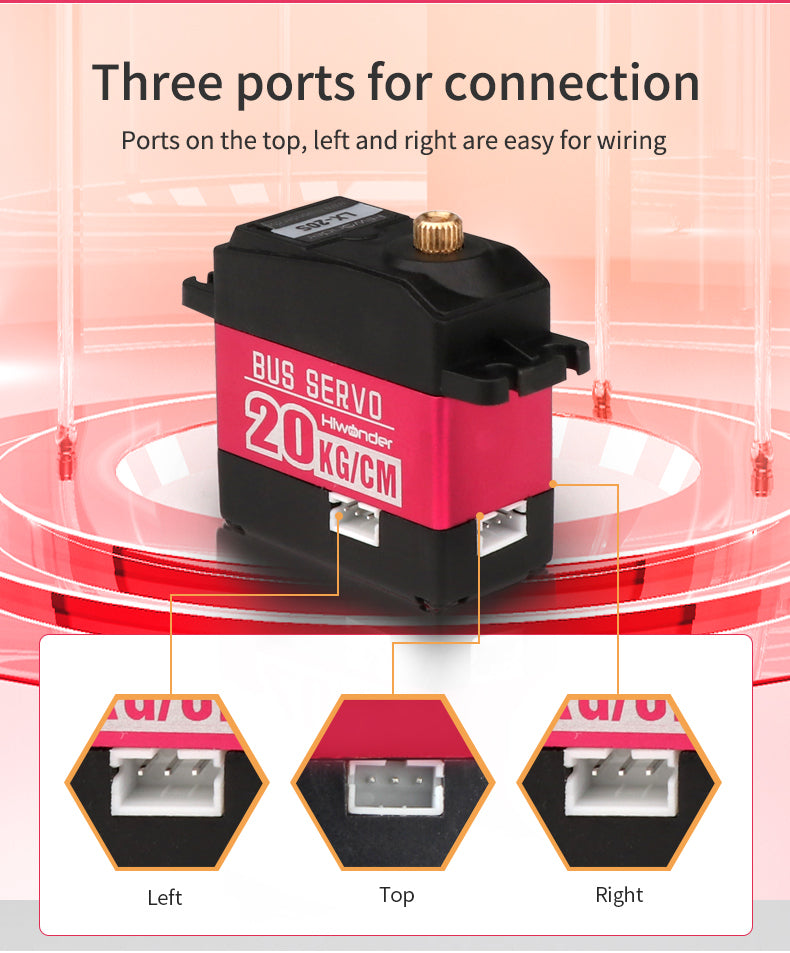

Clean Wiring
There are 3 ports for you to connect which makes the project have clean wiring and beautiful outlook.

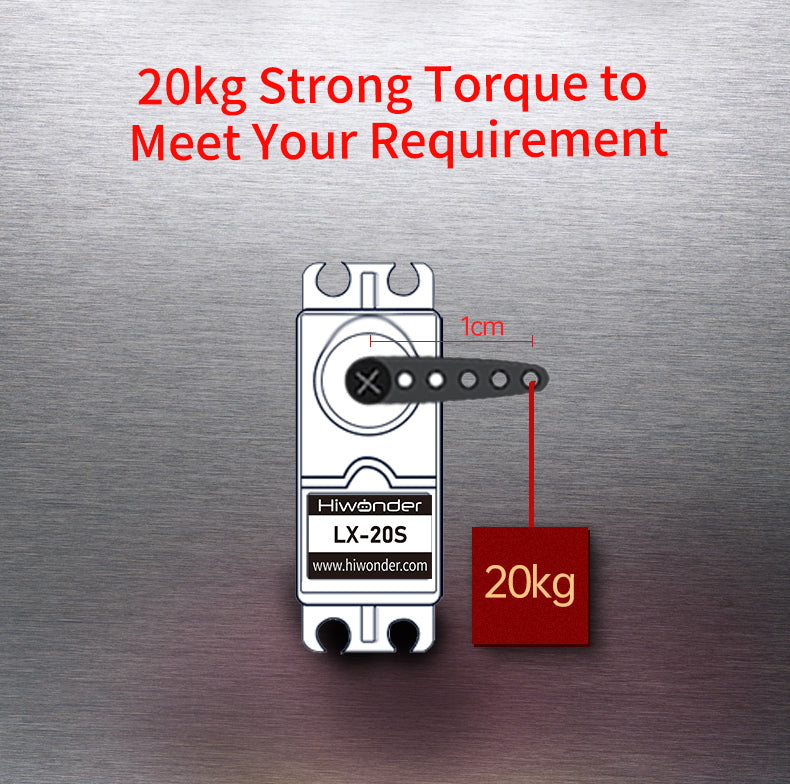

Powerful Torque

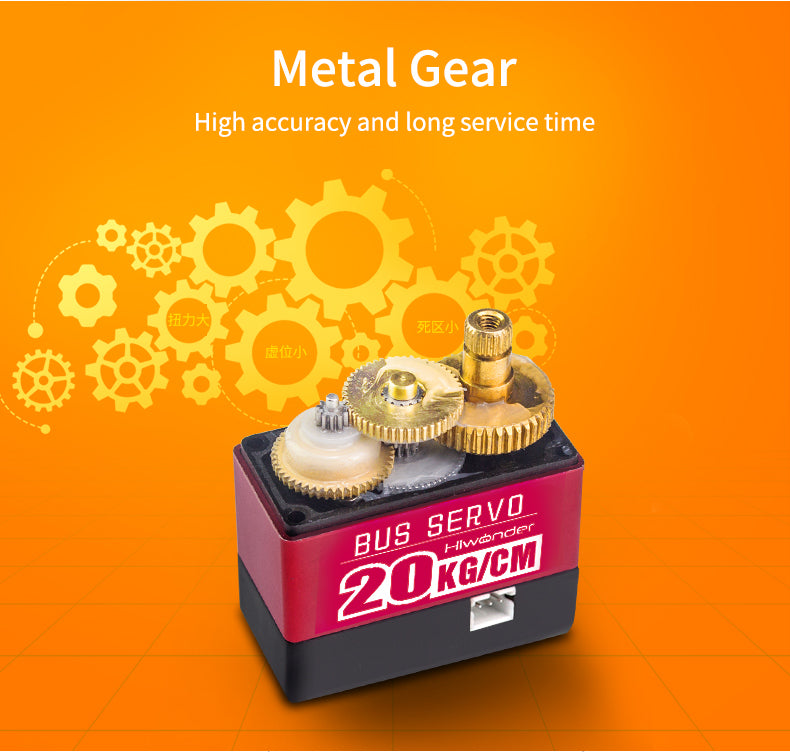

All Metal Gear

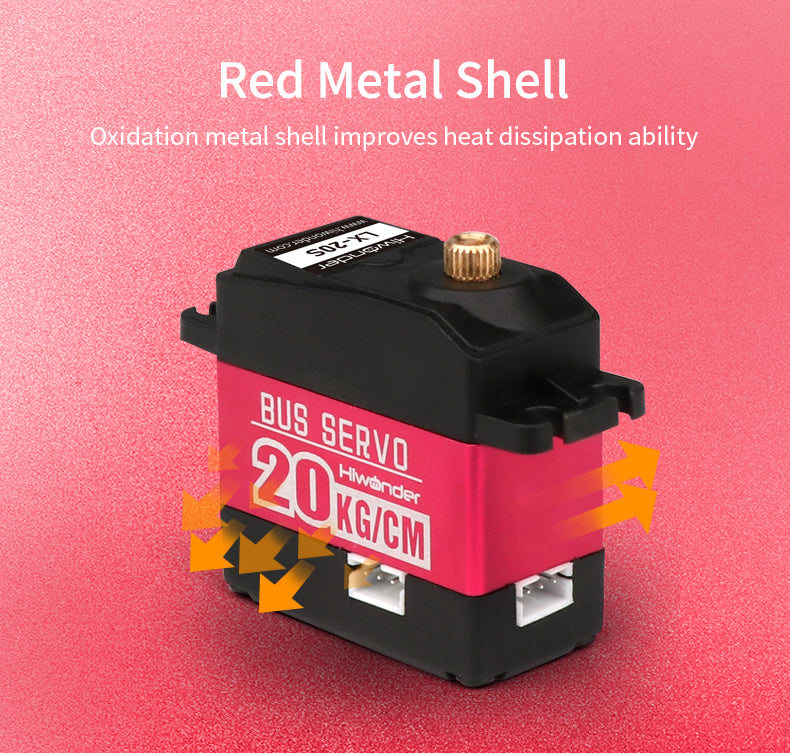

Red Metal Shell

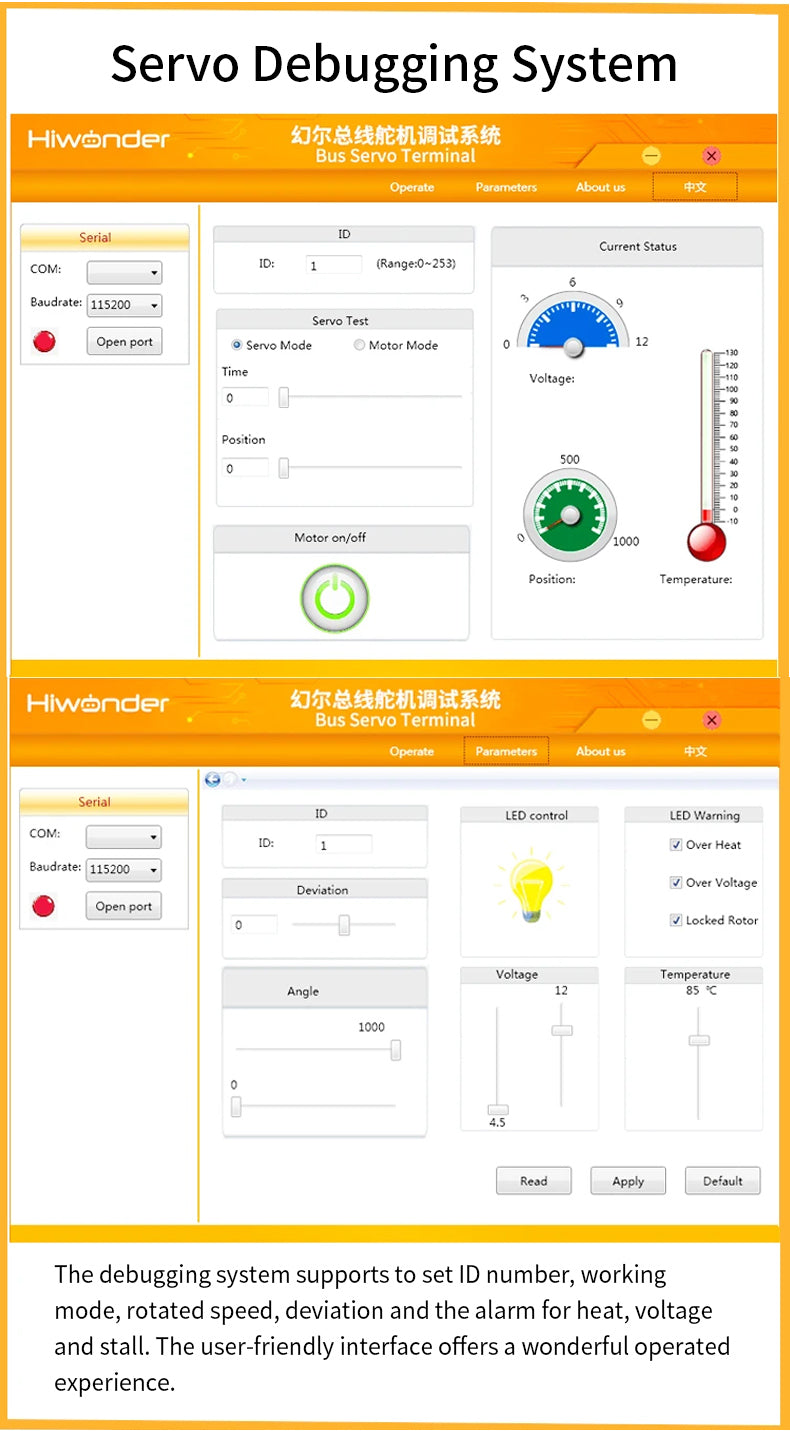

Servo Debugging System
In Debugging system, you can set ID number, working mode, rotation speed, position deviation, LED light, temperature alarm and voltage alarm for servos.

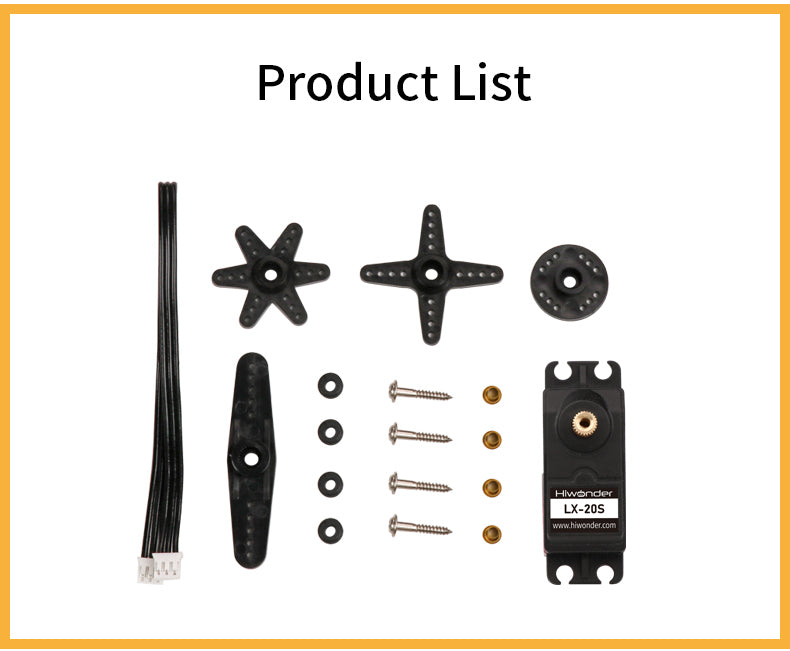

Packing List
1* LX-20S serial bus servo 4* Plastic servo horn
1* Screw bag 1* Servo wire
Powerful Torque
All Metal Gear
Red Metal Shell
Servo Debugging System
In Debugging system, you can set ID number, working mode, rotation speed, position deviation, LED light, temperature alarm and voltage alarm for servos.
Packing List
1* LX-20S serial bus servo
1* Screw bag
4* Plastic servo horn
1* Servo wire
This product: Hiwonder LX-20S Serial Bus Servo/20KG High Torque/Position Feedback
$17.99 1799
Hiwonder TTL / USB Debugging Board
$12.99 1299
Serial Bus Servo Controller: Hiwonder Serial Bus Servo Controller Communication Tester
$28.99 2899
$59.97
Product Description This three connectors serial bus smart servo possess 20KG torque and adopts all-metal gears inside, strong and durable. It can be controlled by serial port commands, connected multiple servos at the same time, which can help us create robotic arms and bionic robots. Compared with ordinary servos on the market, it can reading back the angle and faceback voltage, temperature position parameter. Feature
  • Equipped with position/temperature/voltage feedback, protect the servo from burning
  • With the TTL/USB debugging board, you can set the servo through the provided PC software
  • High-precision potentiometer for more stable operation
  • Provide bus servo communication protocol, 51, Arduino and STM32 source code
Clean Wiring There are 3 ports for you to connect which makes the project have clean wiring and beautiful outlook. Powerful Torque All Metal Gear Red Metal Shell Servo Debugging System In Debugging system, you can set ID number, working mode, rotation speed, position deviation, LED light, temperature alarm and voltage alarm for servos. Packing List
1* LX-20S serial bus servo 4* Plastic servo horn
1* Screw bag 1* Servo wire
Powerful Torque All Metal Gear Red Metal Shell Servo Debugging System In Debugging system, you can set ID number, working mode, rotation speed, position deviation, LED light, temperature alarm and voltage alarm for servos. Packing List 1* LX-20S serial bus servo
1* Screw bag
4* Plastic servo horn
1* Servo wire

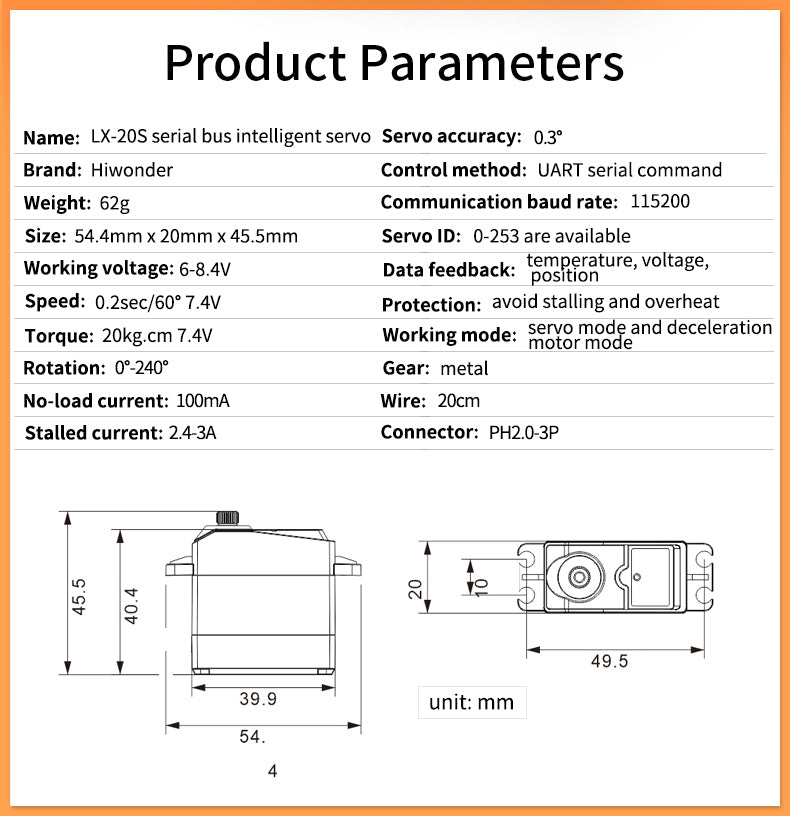

Item Specification
Weight 62g (2.18OZ)
Size 54.38*20.04*45.5mm
Working voltage 6-8.4V
Speed 0.2sec/60°7.4V
Torque 20kg.cm 7.4V
Rotation 0°-240°
No-load current 100mA
Stalled current 2.4-3A
Servo accuracy 0.3°
Control method UART serial command
Communication baud rate 115200
Servo ID 0-253 are available
Data feedback temperature, voltage, position
Protection avoid stalling and overheat
Working mode  servo mode and deceleration motor mode
Connector PH2.0-3P
Package List 1* LX-20S servo
1* 20cm servo wire
4* plastic servo horn
1* screw bag
-
