Hiwonder LX-225 Serial Bus Servo/25KG High Torque/Data FeeDback
Rated 3.5/5 based on 11 customer reviews
Hiwonder LX-225 Serial Bus Servo/25KG High Torque/Data FeeDback

Hiwonder LX-225 Serial Bus Servo/25KG High Torque/Data FeeDback

  • Compatible with Hiwonder Double-shaft Servo Brackets
  • Support temperature, voltage and position feedback
  • Two working modes of servo mode and deceleration mode
  • ID number for recognition
  • Order within
Available: In Stock
$17.99
Wishlist Compare
Product Description
Hiwonder LX-225 servo/motor is a serial bus servo with three connectors. The servo can be connected in series, simplifying the wire connection. LX-225 servo can be used in different bionic robot joints.
Feature
  • Ports on the top, left and right are easy for wiring
  • Provide bus servo communication protocol, 51, Arduino and STM32 source code
  • Each servo has ID number for recognition. The default number is 1 which is modifiable
  • High-precision potentiometer for angle feedback
  • Stable performance to longer the service life
Clean Wiring
There are 3 ports for you to connect which makes the project have clean wiring and beautiful outlook.
Blue Metal Shell
Serial Wiring Connector
High Accuracy Potentiometer
Temperature/Voltage Feedback /RGB Indicator
2 Operation Modes
Metal Gear
Strong Torque
Fixed Double-shaft
ID ldentification, Bus Communication
Servo Debugging System
In Debugging system, you can set ID number, working mode, rotation speed, position deviation, LED light, temperature alarm and voltage alarm for servos.
Application
Three Connectors Intelligent Bus Servo are used in ArmPi FPV for stable and better performance! Compatible with Hiwonder double-shaft servo brackets.
Packing List
1* LX-225 serial bus servo 1* Main servo horn
1* Assistant servo horn 1* Servo wire
15* Self tapping screw 2* Main assistant screw
Blue Metal Shell
Serial Wiring Connector
High Accuracy Potentiometer
Metal Gear
Strong Torque
Fixed Double-shaft
2 Operation Modes
ID ldentification, Bus Communication
Servo Debugging System
In Debugging system, you can set ID number, working mode, rotation speed, position deviation, LED light, temperature alarm and voltage alarm for servos.
Application
Three Connectors Intelligent Bus Servo are used in ArmPi FPV for stable and better performance! Compatible with Hiwonder double-shaft servo brackets.
Packing List
1* LX-225 serial bus servo 1* Main servo horn
1* Assistant servo horn 1* Servo wire
15* Self tapping screw 2* Main assistant screw
Packing List
1* LX-225 serial bus servo
1* Assistant servo horn
15* Self tapping screw
1* Main servo horn
1* Servo wire
2* Main assistant screw
This product: Hiwonder LX-225 Serial Bus Servo/25KG High Torque/Data FeeDback
$17.99 1799
Hiwonder TTL / USB Debugging Board
$12.99 1299
Serial Bus Servo Controller: Hiwonder Serial Bus Servo Controller Communication Tester
$28.99 2899
$59.97
Product Description Hiwonder LX-225 servo/motor is a serial bus servo with three connectors. The servo can be connected in series, simplifying the wire connection. LX-225 servo can be used in different bionic robot joints. Feature
  • Ports on the top, left and right are easy for wiring
  • Provide bus servo communication protocol, 51, Arduino and STM32 source code
  • Each servo has ID number for recognition. The default number is 1 which is modifiable
  • High-precision potentiometer for angle feedback
  • Stable performance to longer the service life
Clean Wiring There are 3 ports for you to connect which makes the project have clean wiring and beautiful outlook. Blue Metal Shell Serial Wiring Connector High Accuracy Potentiometer Temperature/Voltage Feedback /RGB Indicator 2 Operation Modes Metal Gear Strong Torque Fixed Double-shaft ID ldentification, Bus Communication Servo Debugging System In Debugging system, you can set ID number, working mode, rotation speed, position deviation, LED light, temperature alarm and voltage alarm for servos. Application Three Connectors Intelligent Bus Servo are used in ArmPi FPV for stable and better performance! Compatible with Hiwonder double-shaft servo brackets. Packing List
1* LX-225 serial bus servo 1* Main servo horn
1* Assistant servo horn 1* Servo wire
15* Self tapping screw 2* Main assistant screw
Blue Metal Shell Serial Wiring Connector High Accuracy Potentiometer Metal Gear Strong Torque Fixed Double-shaft 2 Operation Modes ID ldentification, Bus Communication Servo Debugging System In Debugging system, you can set ID number, working mode, rotation speed, position deviation, LED light, temperature alarm and voltage alarm for servos. Application Three Connectors Intelligent Bus Servo are used in ArmPi FPV for stable and better performance! Compatible with Hiwonder double-shaft servo brackets. Packing List
1* LX-225 serial bus servo 1* Main servo horn
1* Assistant servo horn 1* Servo wire
15* Self tapping screw 2* Main assistant screw
Packing List 1* LX-225 serial bus servo
1* Assistant servo horn
15* Self tapping screw
1* Main servo horn
1* Servo wire
2* Main assistant screw

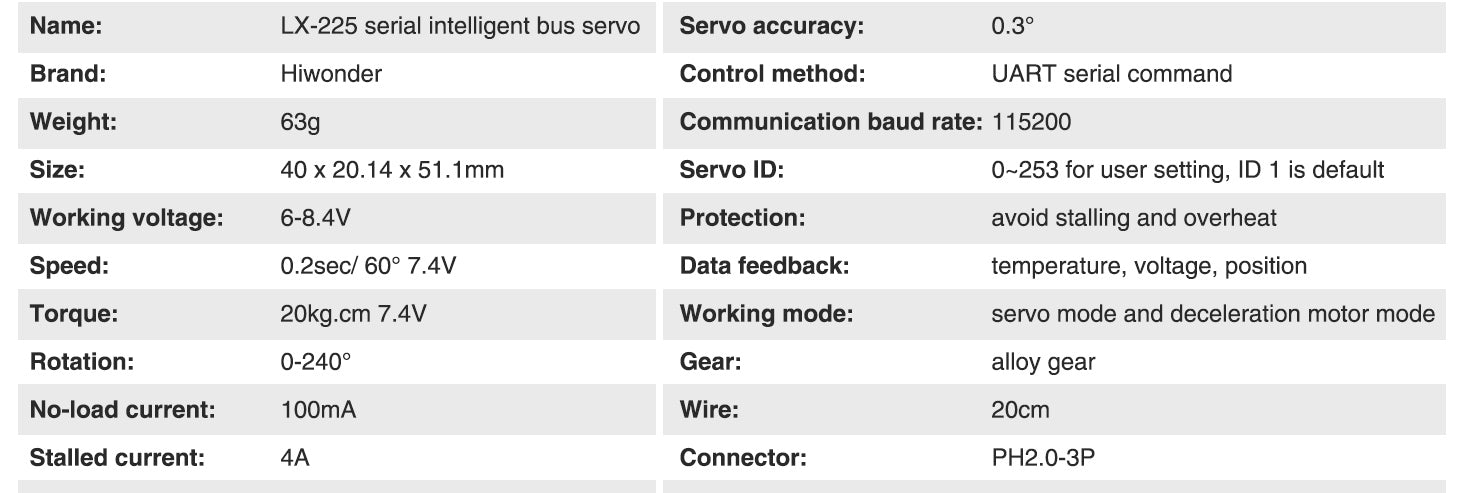

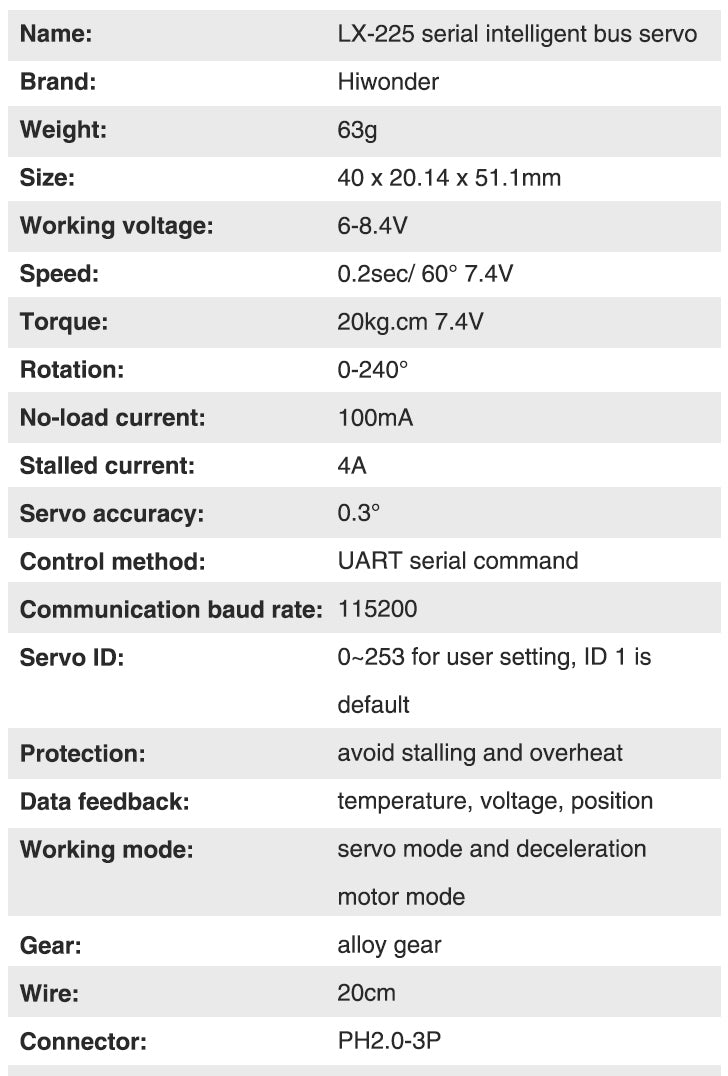

Item Specification
Weight 63g
Size 40*20.14*51.1mm
Working voltage 6-8.4V
Speed  0.22sec/60°7.4V
Torque 20kg.cm 7.4V
Rotation 0°-240°
No-load current 100mA
Standby current 4mA 5mA 6mA
Stalled current 4A
Servo accuracy 0.3°
Control method UART serial command
Communication baud rate 115200
Servo ID 0-253 are available
Data feedback temperature, voltage, position
Protection avoid stalling and overheat
Working mode  servo mode and deceleration mode
Wire 20cm
Connector PH2.0-3P
-
