LSC-6: Hiwonder 6 CH Bluetooth 4.0 Servo Controller Module RC Robot Toy for Children
Rated 3.5/5 based on 11 customer reviews
LSC-6: Hiwonder 6 CH Bluetooth 4.0 Servo Controller Module RC Robot Toy for Children

LSC-6: Hiwonder 6 CH Bluetooth 4.0 Servo Controller Module RC Robot Toy for Children

  • Built-in power switch
  • High-performance CPU
  • 16M high-capacity memory
  • Built in Bluetooth 4.0 module
  • Support TTL serial communication
  • Order within
Available: In Stock
$25.00
Wishlist Compare
Product Description
Hiwonder 6 Channel servo controller has built in Bluetooth 4.0 module,which can be used in robotic arm or biped robot. It has over-current protection, as well as support Android phone and PS2 handle control.
Feature
  • CPU uses high-performance STM32 single chip microcomputer with ARM Cortex-M3 corer.
  • Built in Bluetooth 4.0 module. Support Android App control.
  • Built-in power switch, easy to use.
  • 16M high-capacity memory, which is able to hold 230 action groups! Each action group can hold up to 1020 actions!
  • Support TTL serial communication, the servo controller can be connected with other single chips which support TTL, other single chips can send instructions to the controller.
  • Equipped with 6 channel over-current protection, prevent servo from burning out.
12 Product Features
Android Phone APP Operation Interface

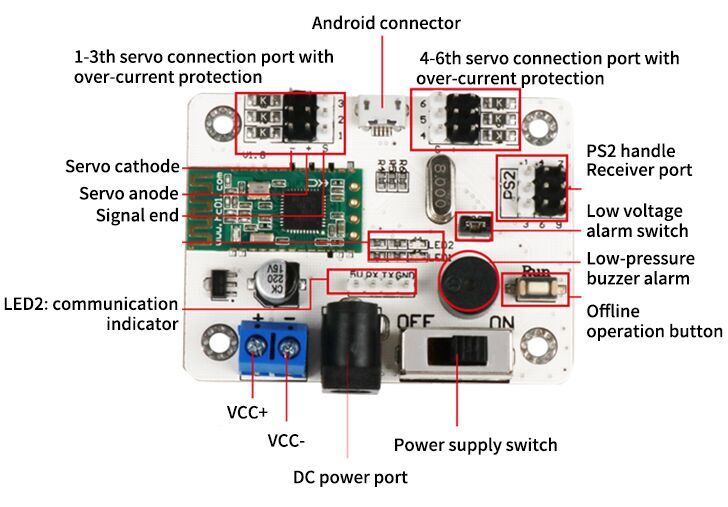

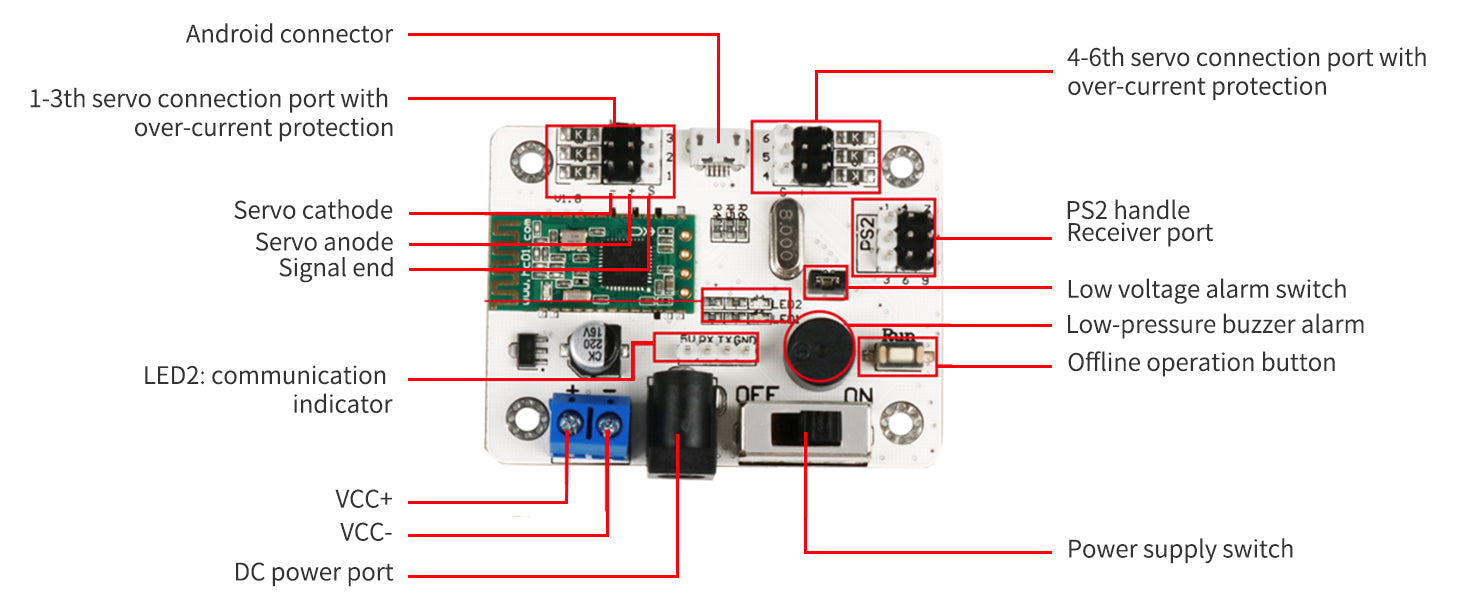

About Wiring
Android Phone APP Operation Interface
About Wiring
Secondary Development
About Serial Communication Wiring
About PS2 Handle Connection
Packing List
1* servo controller
1* user manual
1* mini USB cable
4* M3*8 nylon columns
4* M3*6 machine screws
This product: LSC-6: Hiwonder 6 CH Bluetooth 4.0 Servo Controller Module RC Robot Toy for Children
$25.00 2500
Hiwonder LD-20MG Full Metal Gear Digital Servo with 20kg High Torque, Aluminium Case for Robot RC Car
$18.99 1899
Hiwonder LD-220MG Full Metal Gear Digital Servo with Dual Ball Bearing,Metal Servo Horn, Metal Bracket for Robot
$21.99 2199
$65.98
Product Description Hiwonder 6 Channel servo controller has built in Bluetooth 4.0 module,which can be used in robotic arm or biped robot. It has over-current protection, as well as support Android phone and PS2 handle control. Feature
  • CPU uses high-performance STM32 single chip microcomputer with ARM Cortex-M3 corer.
  • Built in Bluetooth 4.0 module. Support Android App control.
  • Built-in power switch, easy to use.
  • 16M high-capacity memory, which is able to hold 230 action groups! Each action group can hold up to 1020 actions!
  • Support TTL serial communication, the servo controller can be connected with other single chips which support TTL, other single chips can send instructions to the controller.
  • Equipped with 6 channel over-current protection, prevent servo from burning out.
12 Product Features Android Phone APP Operation Interface About Wiring Android Phone APP Operation Interface About Wiring Secondary Development About Serial Communication Wiring About PS2 Handle Connection Packing List 1* servo controller
1* user manual
1* mini USB cable
4* M3*8 nylon columns
4* M3*6 machine screws
Item Specification
Outline Area Size 2.28inch*1.65inch
Mounting Hole Size 1.93inch*1.34inch
Bluetooth Moudle 4.0 version
Graphical Programming support
Wireless Handle Control support
The Maximum Number of Controlling Servo 6
Memory 16M
Current-limiting Protection support
External Single-chip(Secondary Development) support
Low Voltage Alarm support
Over-current Protection support
Net Weight 20 grams
Package List 1*  servo controller
1*  user manual
1*  mini USB cable
4*  M3*8 nylon columns
4*  M3*6 machine screws
-
