LSC-6: Hiwonder 6 CH Bluetooth 4.0 Servo Controller Module RC Robot Toy for Children
- Built-in power switch
- High-performance CPU
- 16M high-capacity memory
- Built in Bluetooth 4.0 module
- Support TTL serial communication
- Product SKU: HW2019036
- Category: All Products, All Products, Servo, Servo Controller
- Order within

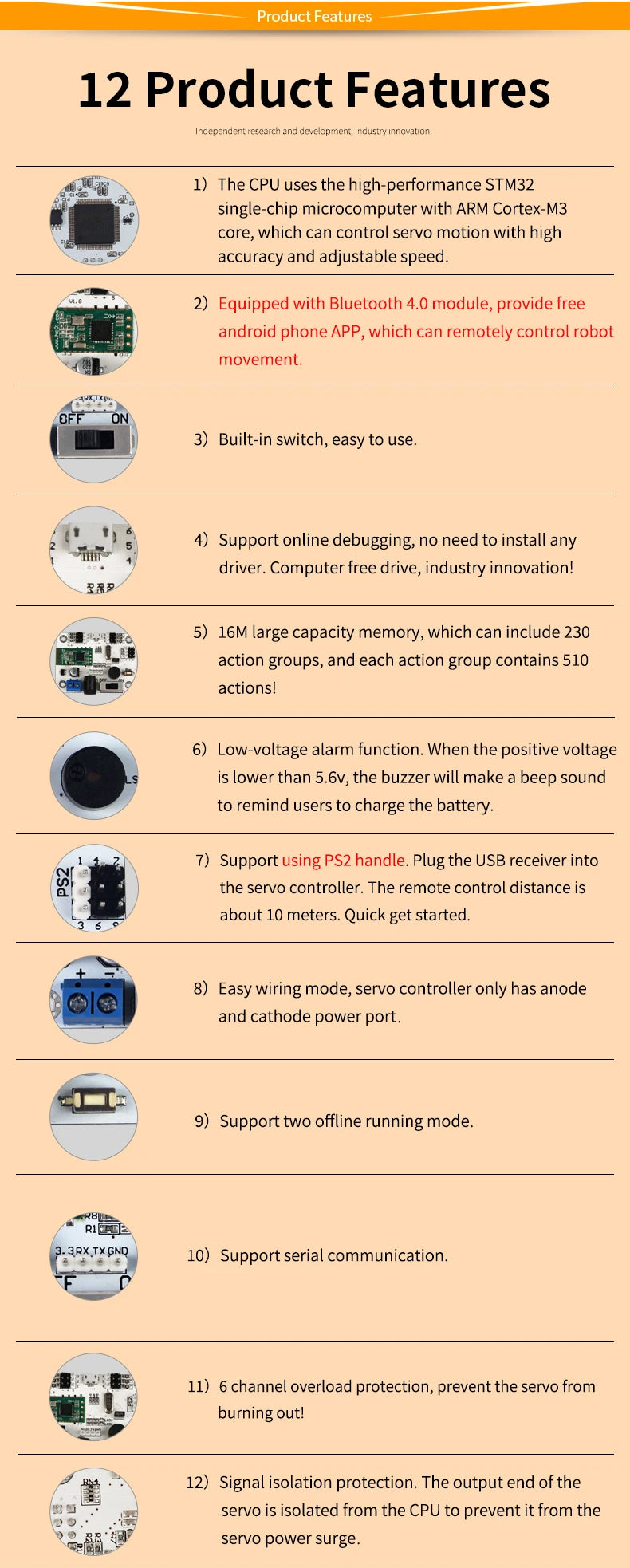

Feature
-
CPU uses high-performance STM32 single chip microcomputer with ARM Cortex-M3 corer.
-
Built in Bluetooth 4.0 module. Support Android App control.
-
Built-in power switch , easy to use.
-
16M high-capacity memory, which is able to hold 230 action groups! Each action group can hold up to 1020 actions!
-
Support TTL serial communication, the servo controller can be connected with other single chips which support TTL, other single chips can send instructions to the controller.
-
Equipped with 6 channel over-current protection, prevent servo from burning out.
Feature
-
CPU uses high-performance STM32 single chip microcomputer with ARM Cortex-M3 corer.
-
Built in Bluetooth 4.0 module. Support Android App control.
-
Built-in power switch , easy to use.
-
16M high-capacity memory, which is able to hold 230 action groups! Each action group can hold up to 1020 actions!
-
Support TTL serial communication, the servo controller can be connected with other single chips which support TTL, other single chips can send instructions to the controller.
-
Equipped with 6 channel over-current protection, prevent servo from burning out.
| Item | Specification |
| Outline Area Size | 2.28inch*1.65inch |
| Mounting Hole Size | 1.93inch*1.34inch |
| Bluetooth Moudle | 4.0 version |
| Graphical Programming | support |
| Wireless Handle Control | support |
| The Maximum Number of Controlling Servo | 6 |
| Memory | 16M |
| Current-limiting Protection | support |
| External Single-chip(Secondary Development) | support |
| Low Voltage Alarm | support |
| Over-current Protection | support |
| Net Weight | 20 grams |
| Package List | 1* servo controller 1* user manual 1* mini USB cable 4* M3*8 nylon columns 4* M3*6 machine screws |
