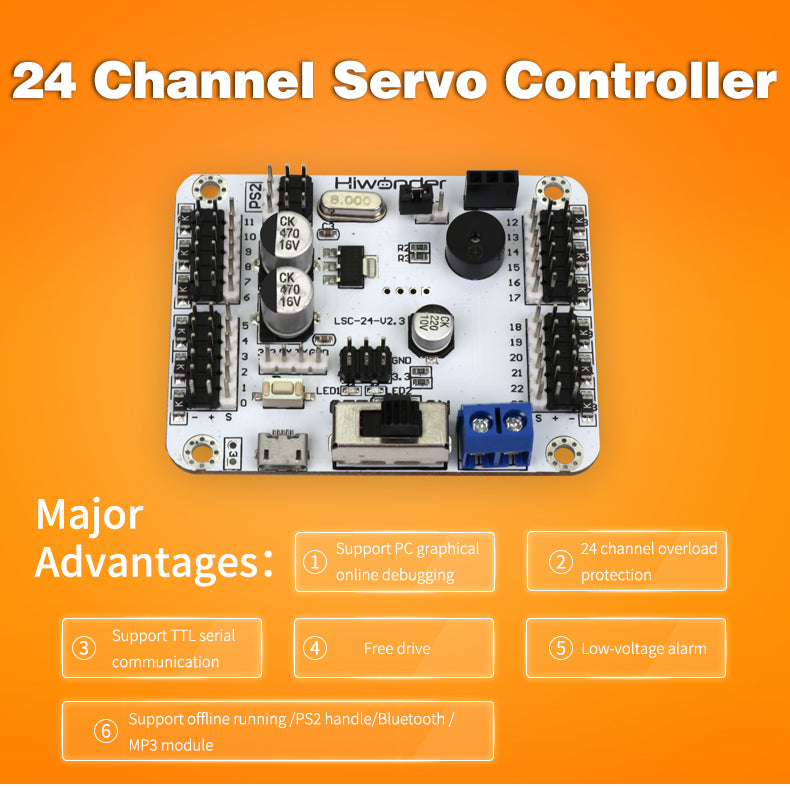

LSC-24: Hiwonder 24 Channel Digital Servo Controller with 16M Memory/Arduino Compatible
Rated 3.5/5 based on 11 customer reviews
LSC-24: Hiwonder 24 Channel Digital Servo Controller with 16M Memory/Arduino Compatible

LSC-24: Hiwonder 24 Channel Digital Servo Controller with 16M Memory/Arduino Compatible

  • Low voltage alarm
  • Simple wiring design
  • Built-in power switch
  • High-performanceCPU
  • Support wireless handle
  • 16M high-capacity memory
  • Support Bluetooth/MP3 module
  • Support TTL serial communication
  • Equipped with over-current protection
  • All servo interface have over-current protection
  • Online debugging and install drivers automatically
  • Order within
Available: In Stock
$24.00
Wishlist Compare
This product: LSC-24: Hiwonder 24 Channel Digital Servo Controller with 16M Memory/Arduino Compatible
$24.00 2400
Hiwonder LDX-218 Full Metal Gear Digital Servo with Dual Ball Bearing for Robot (Control Angle 180)
$19.99 1999
Hiwonder LDX-227 Full Metal Gear Digital Servo with Dual Ball Bearing for Robot(Control Angle 270)
$20.50 2050
$64.49
The CPU of 24-channel servo controller uses high-performance STM32 single chip microcomputer with ARM Cortex-M3 corer, not only can control servo's movement, but their speed adjustment. It has 16M high-capacity memory, which can hold 230 action groups! All 24 channels servo interface have over-current protection, greatly prevent the servo from burning out because of the locked-rotor. We provide PC software which supports online graphical debugging. You can control 24-channel servo at the same time.



 Feature

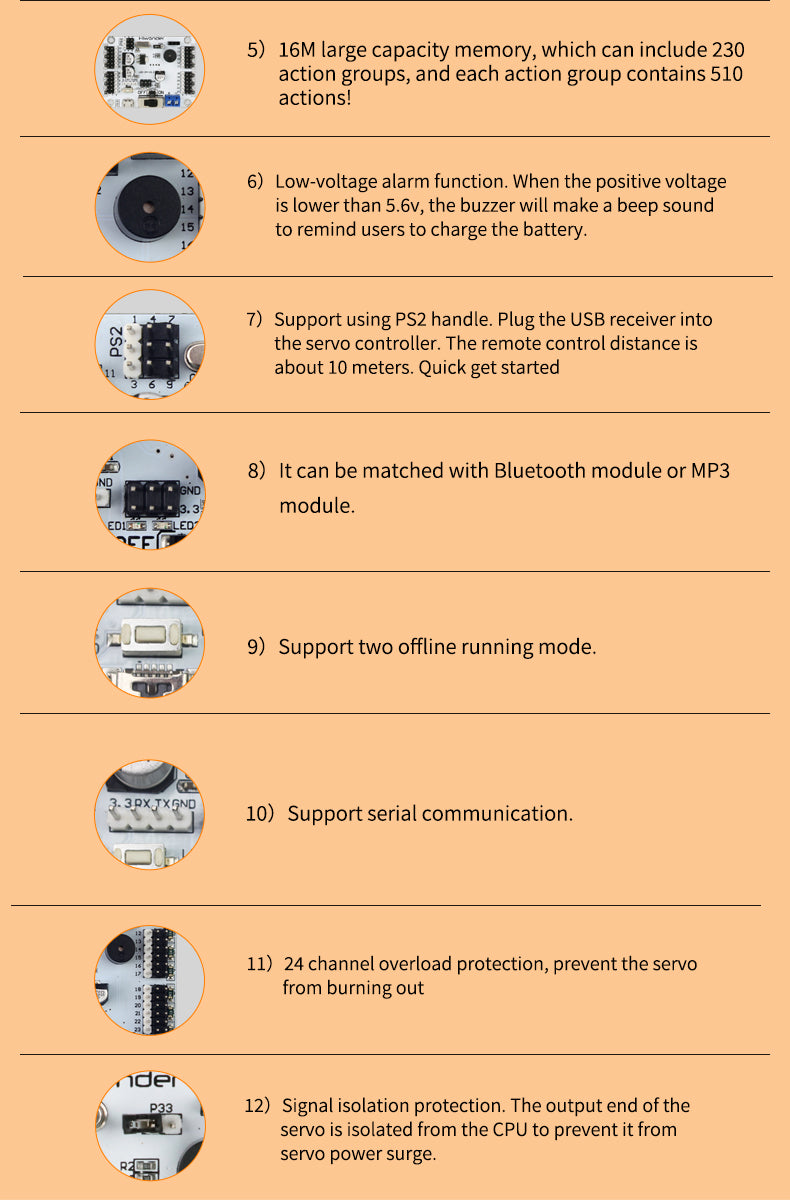

  • 16M high-capacity memory, which is able to hold 230 action groups! Each action group can hold up to 510 actions!

  • CPU uses high-performance STM32 single chip microcomputer with ARM Cortex-M3 corer.

  • Equipped with over-current protection. The output of the servo is isolated from the CPU to avoid the current surge of servo which may cause damage to the CPU .

  • Low voltage alarm. When the output voltage of the lithium battery is below 5V, the buzzer will play a beep sound to remind customers to charge .

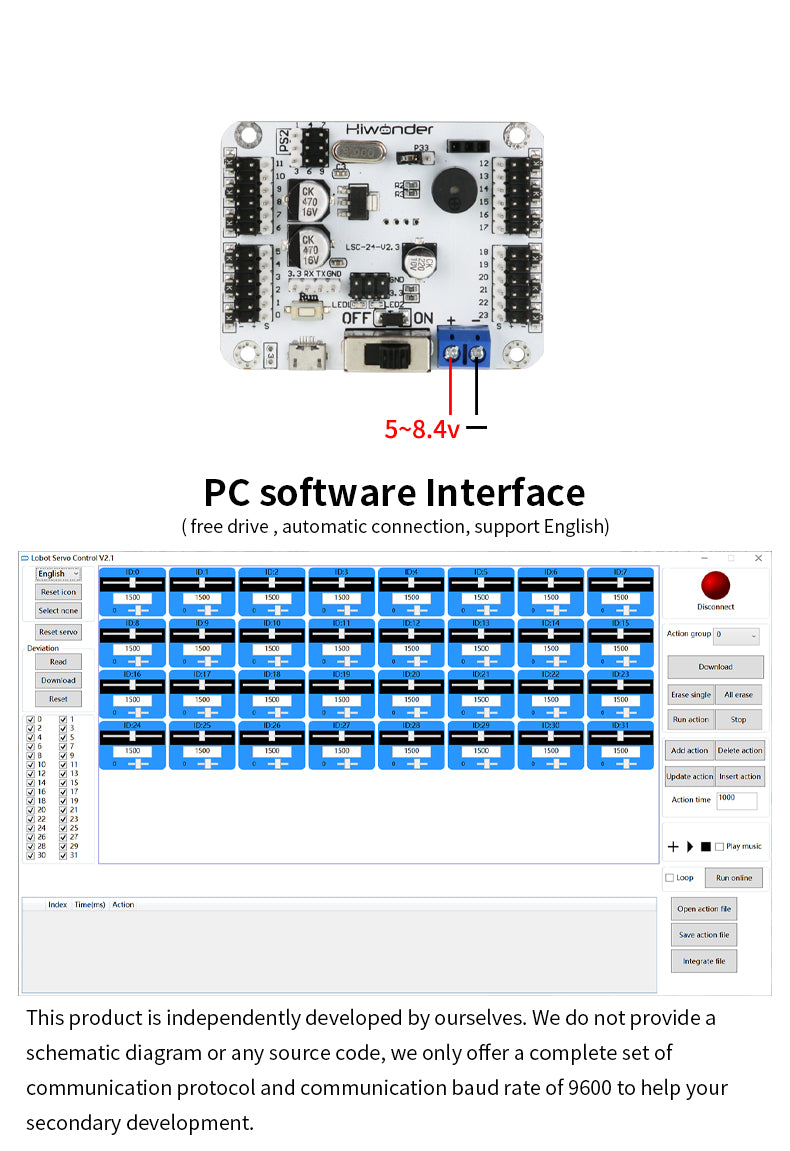

  • Support online debugging, install drivers automatically .

  • Built-in power switch , easy to use.

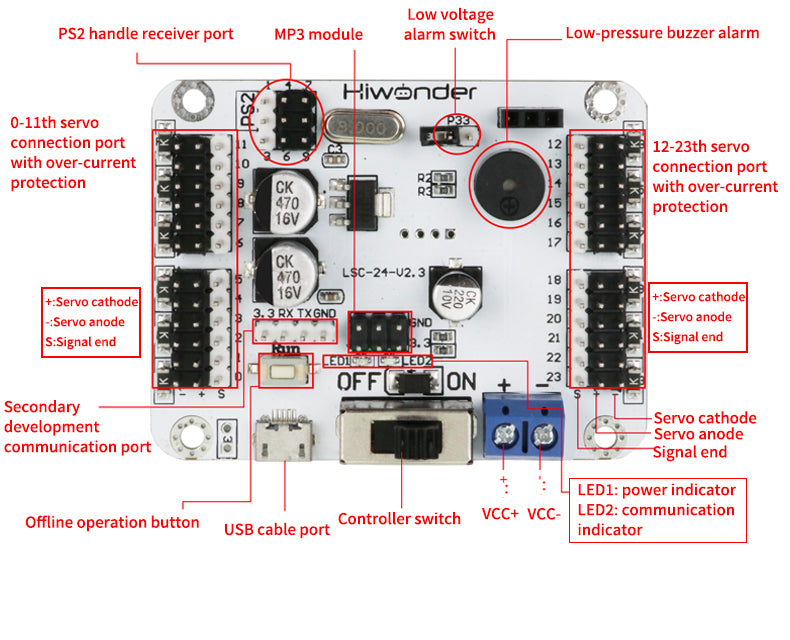

  • Simple wiring design, the control board only has positive and negative power interface.

  • All 24 channels servo interface have over-current protection! Greatly prevent the servo from burning out because of the locked-rotor.

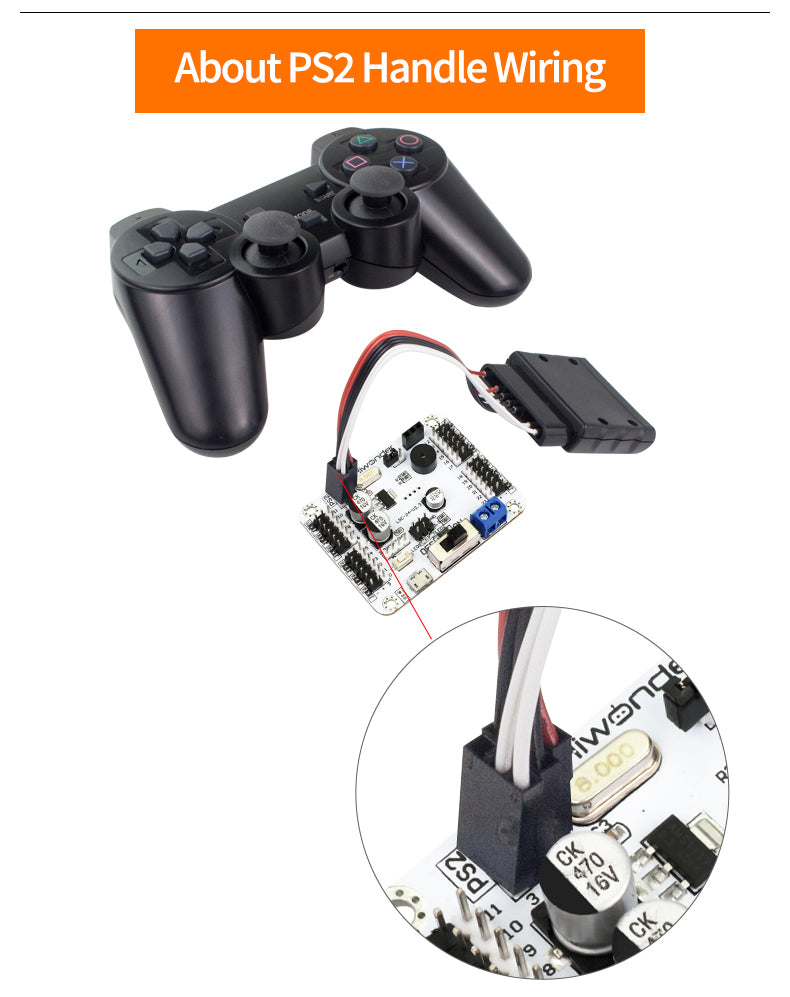

  • Support wireless handle, easy to operate.

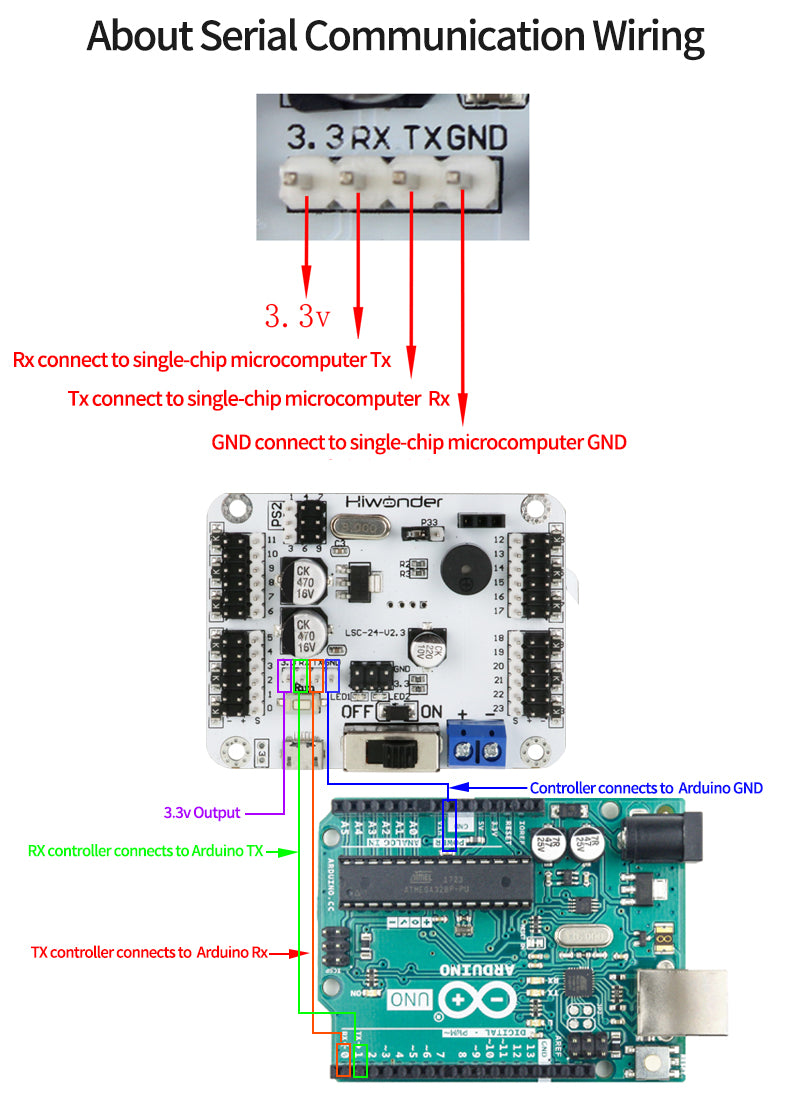

  • Support TTL serial communication, the servo controller can be connected with other single chips which support TTL, other single chips can send instructions to the controller.

  • Support two offline operating modes.

  • Support bluetooth/MP3 module.

The CPU of 24-channel servo controller uses high-performance STM32 single chip microcomputer with ARM Cortex-M3 corer, not only can control servo's movement, but their speed adjustment. It has 16M high-capacity memory, which can hold 230 action groups! All 24 channels servo interface have over-current protection, greatly prevent the servo from burning out because of the locked-rotor. We provide PC software which supports online graphical debugging. You can control 24-channel servo at the same time.



 Feature

  • 16M high-capacity memory, which is able to hold 230 action groups! Each action group can hold up to 510 actions!

  • CPU uses high-performance STM32 single chip microcomputer with ARM Cortex-M3 corer.

  • Equipped with over-current protection. The output of the servo is isolated from the CPU to avoid the current surge of servo which may cause damage to the CPU .

  • Low voltage alarm. When the output voltage of the lithium battery is below 5V, the buzzer will play a beep sound to remind customers to charge .

  • Support online debugging, install drivers automatically .

  • Built-in power switch , easy to use.

  • Simple wiring design, the control board only has positive and negative power interface.

  • All 24 channels servo interface have over-current protection! Greatly prevent the servo from burning out because of the locked-rotor.

  • Support wireless handle, easy to operate.

  • Support TTL serial communication, the servo controller can be connected with other single chips which support TTL, other single chips can send instructions to the controller.

  • Support two offline operating modes.

  • Support bluetooth/MP3 module.

Item

Specification

Package List

1*  servo controller
1*  user manual
1*  mini USB cable
4*  M3*8 nylon columns
4*  M3*6 machine screws





Important Notes

  • The PC software support Windows, no support for Mac.

  • Bluetooth/MP3 module are dedicated accessories, they are required to purchase separately from our website.
