Hiwonder SpiderPi: AI Intelligent Visual Hexapod Robot Powered by Raspberry Pi 4B 4GB
Rated 3.5/5 based on 11 customer reviews
Hiwonder SpiderPi: AI Intelligent Visual Hexapod Robot Powered by Raspberry Pi 4B 4GB

Hiwonder SpiderPi: AI Intelligent Visual Hexapod Robot Powered by Raspberry Pi 4B 4GB

  • High voltage bus servo
  • Video transmission
  • Provide open source code
  • Powered by Raspberry Pi 4B 4GB
  • Based on Raspberry Pi 4B and Raspberry Pi extension board
  • PC software,phone App and VNC remote desktop control
  • Order within
Available: In Stock
$599.99
SpiderPi Standard kit
SpiderPi Advanced kit
Product Description
The controller of SpiderPi is Raspberry Pi 4B and the programming language is Python. Equipped with 2DOF HD camera, SpiderPi can realize intelligent games such Facial Recognition and Intelligent Transport.
Detailed tutorials and Python source code will be provided for your learning of AI vision, OpenCV, bionic gait, robotics etc.
Feature
  • The robot kit includes the Raspberry Pi 4B 4GB controller board.
  • Large capacity battery, long working duration.
  • Provide PC software source code and Python source code.
  • Robot battery voltage display.
  • Installed HD camera catches real-time images.
  • Support PC software, phone App and VNC remote desktop control.
  • The robot kit includes the Raspberry Pi 4B 4GB controller board.
  • Large capacity battery, long working duration.
  • Provide PC software source code and Python source code.
  • Robot battery voltage display.
  • Support PC software, phone App and VNC remote desktop control.
Color Recognition
Color Tracking
Tag Recognition
Facial Recognition
AI Vision Recognition
120° HD wide-angle camera contributes to the better performance of Facial Recognition, Color Tracking, Tag Recognition, Color Recognition, etc.
Inverse Kinematic Gait
Using kinematic algorithms, SpiderPi moves more smoothly and can complete quick dynamic turning and other challenging actions.
Line Following
SpiderPi can recognize black, white and red lines through OpenCV. Calculate the position and adjust the following route.
Intelligent Transport
In AI transport mode, SpiderPi detects the object distance by vision recognition, and then switch gaits autonomously to move it to the specific area.
Obstacle Avoidance
There is a RGB ultrasonic sensor in SpiderPi so that you can set the obstacle avoidance distance and the glowing color in the APP.
Wi-Fi Control
Under LAN mode, you can use the APP or PC software to control the SpiderPi. Drag the sliders to program actions without writing code in PC software.
Connect “WonderPi” APP to the LAN instead of searching IP in router to set MAC. Get the IP with one click for the remote connection and operation.
High Voltage Bus Servo
Compared with traditional 7.4V servo, the 11.1V high-voltage servo has longer service time and less power consumption.
Powerful Control System
  • Independent power switch for stable power supply
  • channel PWM servo port with avoiding current protection
  • Loaded 6-axis sensor IC helps data collection
  • GPIO pins and 4 IIC ports for users’ extension
  • 4PIN ports are compatible with Hiwonder sensors
SpiderPi Standard Kit
SpiderPi Advanced Kit

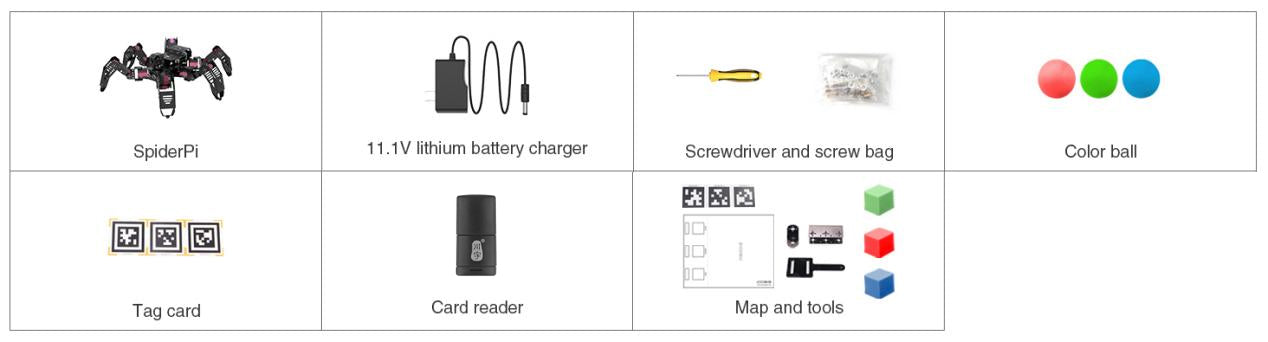

Standard & Advanced Kit
Note: the SpiderPi robotic arm includes a Raspberry Pi 4B 4GB controller. The memory card is 16G.
This product: Hiwonder SpiderPi: AI Intelligent Visual Hexapod Robot Powered by Raspberry Pi 4B 4GB
$599.99 59999
TonyPi Hiwonder AI Intelligent Visual Humanoid Robot Powered by Raspberry Pi 4B 4GB
$569.99 56999
$1,169.98
Product Description The controller of SpiderPi is Raspberry Pi 4B and the programming language is Python. Equipped with 2DOF HD camera, SpiderPi can realize intelligent games such Facial Recognition and Intelligent Transport.
Detailed tutorials and Python source code will be provided for your learning of AI vision, OpenCV, bionic gait, robotics etc.
Feature
  • The robot kit includes the Raspberry Pi 4B 4GB controller board.
  • Large capacity battery, long working duration.
  • Provide PC software source code and Python source code.
  • Robot battery voltage display.
  • Installed HD camera catches real-time images.
  • Support PC software, phone App and VNC remote desktop control.
  • The robot kit includes the Raspberry Pi 4B 4GB controller board.
  • Large capacity battery, long working duration.
  • Provide PC software source code and Python source code.
  • Robot battery voltage display.
  • Support PC software, phone App and VNC remote desktop control.
Color Recognition Color Tracking Tag Recognition Facial Recognition AI Vision Recognition 120° HD wide-angle camera contributes to the better performance of Facial Recognition, Color Tracking, Tag Recognition, Color Recognition, etc. Inverse Kinematic Gait Using kinematic algorithms, SpiderPi moves more smoothly and can complete quick dynamic turning and other challenging actions. Line Following SpiderPi can recognize black, white and red lines through OpenCV. Calculate the position and adjust the following route. Intelligent Transport In AI transport mode, SpiderPi detects the object distance by vision recognition, and then switch gaits autonomously to move it to the specific area. Obstacle Avoidance There is a RGB ultrasonic sensor in SpiderPi so that you can set the obstacle avoidance distance and the glowing color in the APP. Wi-Fi Control Under LAN mode, you can use the APP or PC software to control the SpiderPi. Drag the sliders to program actions without writing code in PC software.
Connect “WonderPi” APP to the LAN instead of searching IP in router to set MAC. Get the IP with one click for the remote connection and operation.
High Voltage Bus Servo Compared with traditional 7.4V servo, the 11.1V high-voltage servo has longer service time and less power consumption. Powerful Control System
  • Independent power switch for stable power supply
  • channel PWM servo port with avoiding current protection
  • Loaded 6-axis sensor IC helps data collection
  • GPIO pins and 4 IIC ports for users’ extension
  • 4PIN ports are compatible with Hiwonder sensors
SpiderPi Standard Kit SpiderPi Advanced Kit Standard & Advanced Kit Note: the SpiderPi robotic arm includes a Raspberry Pi 4B 4GB controller. The memory card is 16G.
Item Specification
Raspberry Pi 4B Processor: Broadcom BCM2711, quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
Memory: 1GB, 2GB or 4GB LPDDR4(depending on model)
Connectivity:
2.4 GHz and 5.0 GHz IEEE 802.11b/g/n/ac wireless
LAN, Bluetooth 5.0, BLE
Gigabit Ethernet
2 × USB 3.0 ports
2 × USB 2.0 ports
GPIO: Standard 40-pin GPIO header(fully backwards-compatible with previous boards)
Video & Sound:
2 × micro HDMI ports (up to 4Kp60 supported)
2-lane MIPI DSI display port
2-lane MIPI CSI camera port
4-pole stereo audio and composite video port
Multimedia:
H.265 (4Kp60 decode)
H.264 (1080p60 decode, 1080p30 encode)
OpenGL ES, 3.0 graphics
SD card support: Micro SD card slot for loading operating system and data storage
Input power:
5V DC via USB-C connector (minimum 3A)
5V DC via GPIO header (minimum 3A)
Power over Ethernet (PoE)–enabled(requires separate PoE HAT)
Environment: Operating temperature 0–50ºC
Raspberry Pi Extension Board  The built-in over-current protection of 8 channel PWM port prevents the servo from damage.
Built-in single bus serial electric circuit can directly control the serial servo
Two-channel programmable LED lights, clearly show the working status of the system
Two-channel programmable buttons for more conveniently setting the system
Reserved IIC and UART ports, which can be compatible with various sensors
Servo  LX-824 three-port bus servo
Power Supply 11.1V 2500mAh 10C
Product Weight 2.35kg
Working Hours about 40min

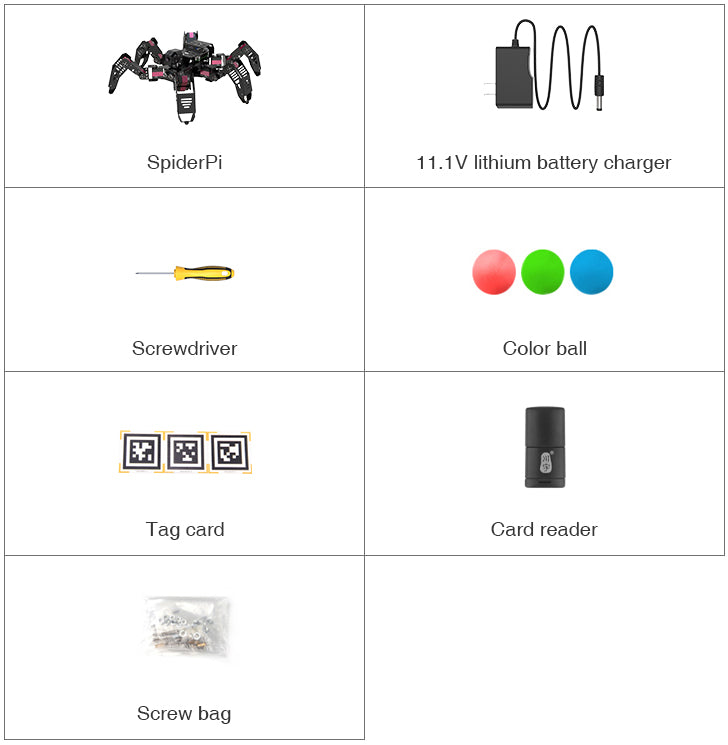

Package List(Finished Parts)

1* robot frame
18* LDX-224HV three-port bus servo
1* Raspberry Pi(4B 4GB)
1* Raspberry Pi extension board
2* LFD-01 servo
1*16G memory card
1* HD camera
1* 11.1 V 2500mAh lithium battery
1* voltage display
1* camera head frame
1* pack of accessories
1* power charger
1* Ultrasonic sensor
20* servo wire
1* screwdriver
3* Tag card
3* Color ball
