Hiwonder LDX-218 Full Metal Gear Digital Servo with Dual Ball Bearing for Robot (Control Angle 180)
Rated 3.5/5 based on 11 customer reviews
Hiwonder LDX-218 Full Metal Gear Digital Servo with Dual Ball Bearing for Robot (Control Angle 180)
Hiwonder

Hiwonder LDX-218 Full Metal Gear Digital Servo with Dual Ball Bearing for Robot (Control Angle 180)

  • 17kg large torque. 15 kg·cm (208 oz·in) @6.6V
  • 17 kg·cm (236 oz·in) @7.4V
  • Full metal gear
  • 270 degree rotation
  • Using high-precision potentiometer with new design
  • Convenient plug-in wire
  • Order within
Available: In Stock
$19.99
Wishlist Compare
This product: Hiwonder LDX-218 Full Metal Gear Digital Servo with Dual Ball Bearing for Robot (Control Angle 180)
$19.99 1999
Hiwonder 6 Channel Digital Servo Tester with Over-Current Protection
$18.00 1800
Double-shaft Servo Frame: Compatible with Hiwonder Double-shaft Servo
$11.99 1199
$49.98
Hiwonder LDX-218 is a full metal gear standard digital servo with 17kg high torque and dual ball bearing for the robot. The control angle is 180 degree.



 Feature

  • 17kg large torque. 15 kg·cm (208 oz·in) @6.6V; 17 kg·cm (236 oz·in) @7.4V

  • Full metal gear significantly improves servo’s accuracy and extends its service time.

  • Dual ball bearing: one is the driving ball bearing, the other is the assistant ball bearing(support role)

  • Use high-precision potentiometer with a new design. Accuracy and linearity have been greatly improved! Accurate movement can help you build up robots.

  • Convenient plug-in wire. In robots making the process, it is very convenient for you to replace the servo and the wiring will become much easier.


Hiwonder LDX-218 is a full metal gear standard digital servo with 17kg high torque and dual ball bearing for the robot. The control angle is 180 degree.



 Feature

  • 17kg large torque. 15 kg·cm (208 oz·in) @6.6V; 17 kg·cm (236 oz·in) @7.4V

  • Full metal gear significantly improves servo’s accuracy and extends its service time.

  • Dual ball bearing: one is the driving ball bearing, the other is the assistant ball bearing(support role)

  • Use high-precision potentiometer with a new design. Accuracy and linearity have been greatly improved! Accurate movement can help you build up robots.

  • Convenient plug-in wire. In robots making the process, it is very convenient for you to replace the servo and the wiring will become much easier.


Item

Specification

Weight

60g(2.1OZ)

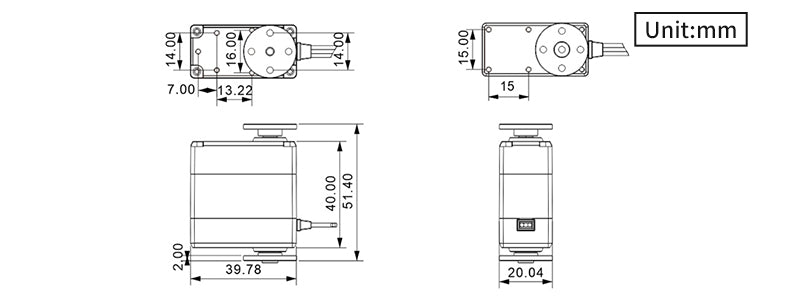

Dimension

40mm*20mm*40.5mm(1.57inch*0.78inch*1.59inch)

Speed

0.16sec/60°(7.4V)

Accuracy

0.3°

Torque

15 kg·cm (208 oz·in) @6.6V;17 kg·cm (236 oz·in) @7.4V

Working Voltage

6-7.4V

Min Working Current

1A

No-load Current

100mA

Spline

25T(6mm diameter)

Default Wire

35cm(13.78inch) in length

Control Method

PWM

Pulse Width

500~2500

Duty Ratio

0.5ms~2.5ms

Pulse Period

20ms

Package List

1* digital servo
1* 30cm servo wire
1* primary servo horn(4mm/0.157in thick)
1* assistant servo horn(2mm/0.078in thick)
15* M2*5 self-tapping screws
2* bracket
180-degree rotation. Controllable angle range from 0 to 270 degrees, Excellent linearity, precised control. Able to rotate from 0 to 360 degrees when power off.  Please make sure that the duty cycle of the controller you used is confirmed to our specifications, otherwise, the servo can't turn up to a claimed degree.



Important Notes

  • Please use Li-Po battery to power the servo, Do Not use the dry battery. Otherwise, the servo will slow down the movement or even stop. (our servo has higher torque, it needs more power to drive).

  • Please use a short and thick power cord, Do Not use Dupont cord

  • Our servo can be controlled by Arduino, please refer to the Arduino library.
