Hiwonder LD-3015MG Full Metal Gear Digital Servo with 17kg High Torque for RC Robot Car
Rated 3.5/5 based on 11 customer reviews
Hiwonder LD-3015MG Full Metal Gear Digital Servo with 17kg High Torque for RC Robot Car

Hiwonder LD-3015MG Full Metal Gear Digital Servo with 17kg High Torque for RC Robot Car

  • 17kg large torque. 15 kg·cm (208 oz·in) 6V
  • 17 kg·cm (236 oz·in) 7.4V
  • Full metal gear
  • 270 degree rotation
  • Using high-precision potentiometer with new design
  • Dimension: 54.5mm*20mm*47.5mm (2.14inch*0.78inch*1.87 inch)
  • Order within
Available: In Stock
$17.99
Wishlist Compare
Product Description
Hiwonder LD-3015MG is a full metal gear standard digital servo with 17 kg high torque, using aluminum case for Robotic RC Car with control angle 270 degrees.
Feature
  • 17KG large torque. 15 kg·cm (208 oz·in) 6V; 17 kg·cm (236 oz·in) 7.4V
  • Full metal gear. Improve servo’s accuracy and extend its service time
  • 270 degrees rotation. Controllable angle range from 0 to 270 degrees, excellent linearity, precision control
  • It can rotate within 360 degrees when power off
  • Use high-precision potentiometer with a new design. Accuracy and linearity have been greatly improved
  • Dimension: 54.5mm*20mm*47.5 mm (2.14inch*0.78inch*1.87 inch)
Metal Gear
15kg Large Torque
270° Rotation Degree
Packing List
1* LD-3015MG digital servo
1* 30cm servo wire
1* servo horn kit
This product: Hiwonder LD-3015MG Full Metal Gear Digital Servo with 17kg High Torque for RC Robot Car
$17.99 1799
Hiwonder Digital Servo Tester Controller with Voltage Display
$9.99 999
$27.98
Product Description Hiwonder LD-3015MG is a full metal gear standard digital servo with 17 kg high torque, using aluminum case for Robotic RC Car with control angle 270 degrees. Feature
  • 17KG large torque. 15 kg·cm (208 oz·in) 6V; 17 kg·cm (236 oz·in) 7.4V
  • Full metal gear. Improve servo’s accuracy and extend its service time
  • 270 degrees rotation. Controllable angle range from 0 to 270 degrees, excellent linearity, precision control
  • It can rotate within 360 degrees when power off
  • Use high-precision potentiometer with a new design. Accuracy and linearity have been greatly improved
  • Dimension: 54.5mm*20mm*47.5 mm (2.14inch*0.78inch*1.87 inch)
Metal Gear 15kg Large Torque 270° Rotation Degree Packing List 1* LD-3015MG digital servo
1* 30cm servo wire
1* servo horn kit
Item Specification
Weight 62g(2.18OZ)

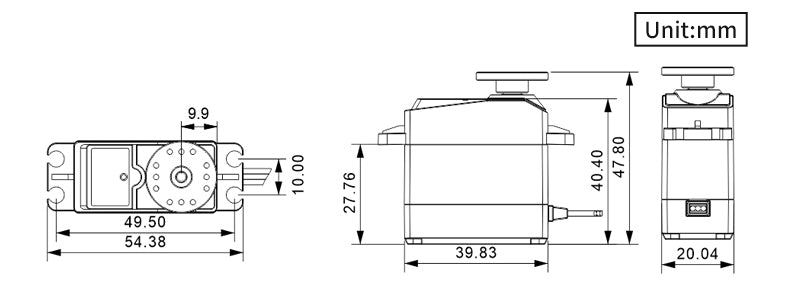

Dimension 54.5mm*20mm*47.5mm (2.14inch* 0.78inch* 1.87 inch)
Speed 0.16sec/60°(7.4V)
Accuracy 0.4°
Torque 15 kg·cm (208 oz·in) 6V;17 kg·cm (236 oz·in) 7.4V
Working Voltage 6-7.4V
Min Working Current 1A
No-load Current 100mA
Spline 25T (6mm diameter)
Servo Wire 30cm (11.8inch) in length
Control Method PWM
Pulse Width 500~2500us, to (0~270deg)
Duty Ratio 0.5ms~2.5ms
Pulse Period 20ms
Wire Layout red wire: +
black wire: GND
white wire: PWM/signal
Package List 1* digital servo
1* 30cm servo wire
1* servo horn kit

Please make sure that the duty cycle of the controller you used is confirmed to our specifications, otherwise, the servo can't turn up to a claimed degree.



Important Tips

  • Recommend to use lithium polymer battery with high rate discharge(min 5C), please don't use the dry battery.

  • Please use a short and thick power cord, don't use Dupont cord.

-
