Hiwonder LD-20MG Full Metal Gear Digital Servo with 20kg High Torque, Aluminium Case for Robot RC Car
Rated 3.5/5 based on 11 customer reviews
Hiwonder LD-20MG Full Metal Gear Digital Servo with 20kg High Torque, Aluminium Case for Robot RC Car
Hiwonder

Hiwonder LD-20MG Full Metal Gear Digital Servo with 20kg High Torque, Aluminium Case for Robot RC Car

  • 20kg large torque. 20 kg/cm (277.6 oz·in) @ 6.6V.
  • Full metal gear significantly
  • Use high-precision and new designed potentiometer .
  • Controllable angle range from 0 to 180 degrees
  • Dimension: 40mm*20mm*40.5mm(1.57inch*0.78inch*1.59inch)
  • Order within
Available: In Stock
$22.89
Wishlist Compare
This product: Hiwonder LD-20MG Full Metal Gear Digital Servo with 20kg High Torque, Aluminium Case for Robot RC Car
$22.89 2289
Hiwonder Digital Servo Tester Controller with Voltage Display
$9.99 999
Single Shaft Servo Frame: Compatible with Hiwonder Single Shaft Servo
$11.99 1199
$44.87
Hiwonder LD-20MG is a full metal gear standard digital servo with 20kg high torque, using aluminium case for Robotic RC Car with control angle 180 degrees.



 Feature

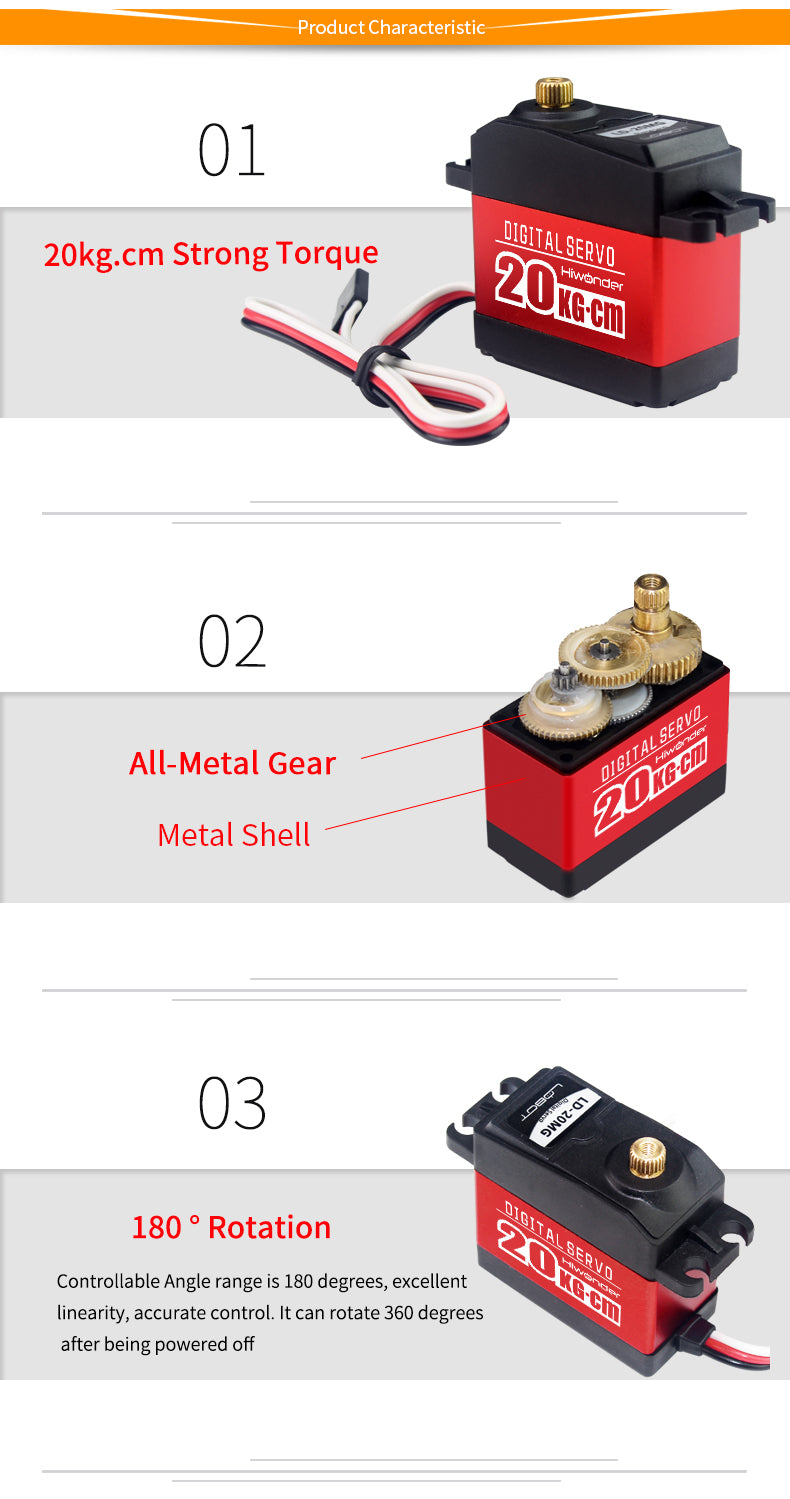

  • 20kg large torque. 20 kg/cm (277.6 oz·in) @ 6.6V. Dimension: 40mm*20mm*40.5mm(1.57inch*0.78inch*1.59inch).

  • Full metal gear significantly improves servo’s accuracy and extend its service time.

  • The aluminium case enhances the heat dissipation and ensures the servo motor can work properly.

  • Use high-precision and newly designed potentiometer. Accuracy and linearity have been greatly improved! Accurate movement can help you build up robots.

  • 180-degree rotation. Controllable angle range from 0 to 180 degrees, excellent linearity, precise It can be rotated within 360 degrees when power off.


Hiwonder LD-20MG is a full metal gear standard digital servo with 20kg high torque, using aluminium case for Robotic RC Car with control angle 180 degrees.



 Feature

  • 20kg large torque. 20 kg/cm (277.6 oz·in) @ 6.6V. Dimension: 40mm*20mm*40.5mm(1.57inch*0.78inch*1.59inch).

  • Full metal gear significantly improves servo’s accuracy and extend its service time.

  • The aluminium case enhances the heat dissipation and ensures the servo motor can work properly.

  • Use high-precision and newly designed potentiometer. Accuracy and linearity have been greatly improved! Accurate movement can help you build up robots.

  • 180-degree rotation. Controllable angle range from 0 to 180 degrees, excellent linearity, precise It can be rotated within 360 degrees when power off.


Item

Specification

Weight

65g(2.32OZ)

Dimension

40mm*20mm*40.5mm(1.57*inch0.78*inch*1.59inch)

Speed

0.16sec/60°(7.4V)

Torque

20 kg·cm (277.6 oz·in) @6.6V

Working Voltage

6-7.4V

Min Working Current

1A(our servo needs a larger current than other servos)

No-load Current

100mA

Spline

25T(6mm in diameter)

Servo Wire

30cm(11.8inch) in length

Control Method

PWM

Pulse Width

500~2500

Duty Ratio

0.5ms~2.5ms

Pulse Period

20ms

Wire Layout

red wire: +
black wire: GND
white wire: PWM/signal

Package List

1* digital servo
1* screw horn kit
Please make sure that the duty cycle of the controller you used is confirmed to our specifications. Otherwise, the servo can't turn up to a claimed degree.



Important Notes

  • Please make sure to avoid locked-rotor when using a servo, the locked-rotor will cause an internal current increase to more than 7 times as well as the temperature, the servo may burn out.

  • Connect GND is necessary.

  • Recommend to use lithium polymer battery with high rate discharge(min 5C), please don't use the dry battery.

  • Please use a short and thick power cord, don't use the Dupont cord.

  • Not compatible for Redcat thunder drift RC car, not compatible for 1/16 scale car.
