Raspberry Pi 4B Extension Kit for xArm Robotic Arm
Rated 3.5/5 based on 11 customer reviews
Raspberry Pi 4B Extension Kit for xArm Robotic Arm

Raspberry Pi 4B Extension Kit for xArm Robotic Arm

  • Raspberry Pi 4B is included
  • Raspberry Pi extension kit ONLY, robot arm is NOT included
  • Upgrade xArm 1S robotic arm to AI vision function
  • Provide Python source code and detailed tutorials
  • Support PC software, phone App and VNC control
  • HD camera, built-in ROS with MoveIt! and inverse kinematics
  • Order within
Available: In Stock
$179.99
Raspberry Pi standard kit
Raspberry Pi advanced kit
Wishlist Compare
Product Description
Do you want your xArm/xArm 1S robotic arm to achieve AI vision games? Why not upgrade the xArm to ArmPi FPV Raspberry Pi robotic arm with AI vision functions now!

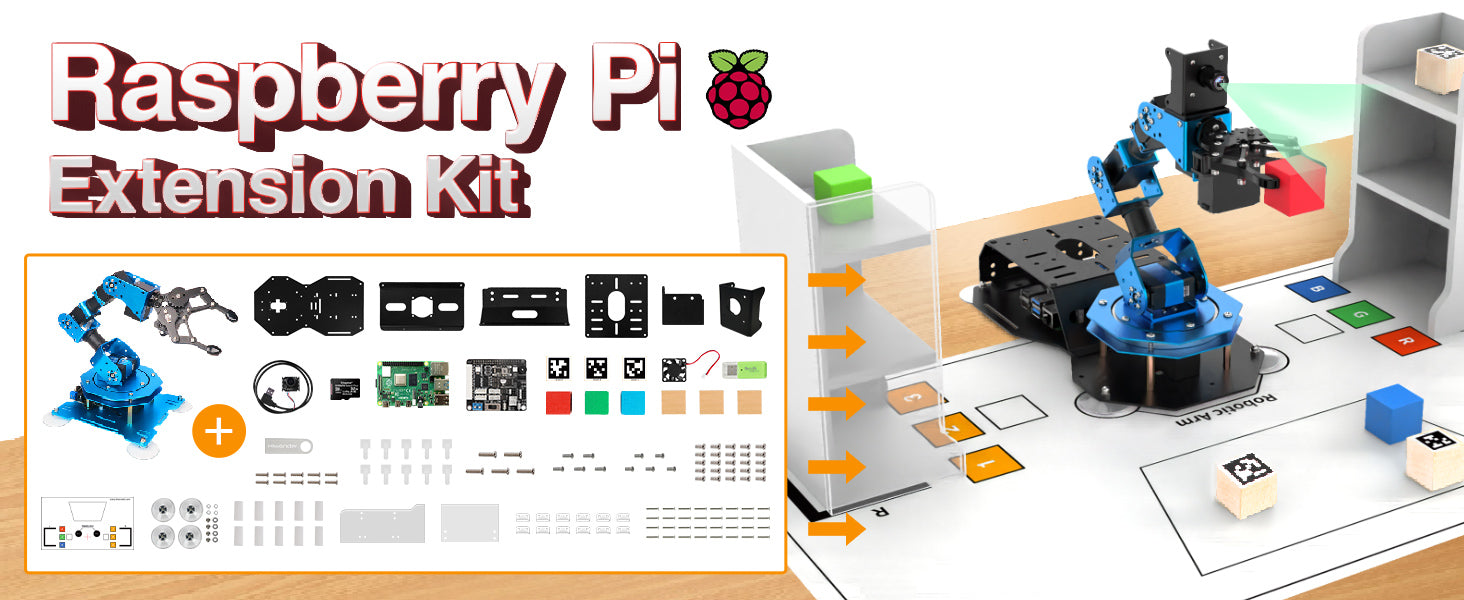

The ArmPi FPV robotic arm can realize Facial Recognition, Color Tracking, Intelligent Stacking, Smart Warehousing and other AI vision recognition functions. Therefore, we have prepared an extension kit for you. This kit includes Raspberry Pi 4B, Raspberry Pi extension board, HD camera, 32G memory card, stand and etc. With this kit only, you can easily upgrade your xArm robotic arm to ArmPi FPV!
Do you want your xArm/xArm 1S robot arm to achieve AI vision games? Why not upgrade it to ArmPi FPV Raspberry Pi robot arm with AI vision functions now!
ArmPi FPV can realize Facial Recognition, Color Tracking, Intelligent Stacking, Smart Warehousing and other AI vision recognition functions. Therefore, we have prepared an extension kit for you. With this kit only, you can easily upgrade your xArm robot arm to ArmPi FPV!
Feature
  • Upgrade your xArm 1S robot arm to ArmPi FPV (Raspberry Pi robot arm) with AI with this extension kit easily
  • Support AI vision games such as Facial Recognition, Color Tracking, Intelligent Stacking, Smart Warehousing and etc
  • Include Raspberry Pi 4B, HD camera
  • Built-in ROS with MoveIt! and inverse kinematics
  • Support PC software, phone App and VNC remote desktop control
  • Provide Python source code and detailed tutorials
Powerful Control System
  • The associated MCU shunts Raspberry Pi workload and reduced resource usage
  • Built-in RGB, buzzer, LED and other response devices
  • Three IIC ports for extension
  • Lead out GPIO pints to your development
  • 4PIN ports are compatible with Hiwonder sensors
Standard & Advanced Kit
This product: Raspberry Pi 4B Extension Kit for xArm Robotic Arm
$179.99 17999
xArm 1S: Hiwonder Intelligent Bus Servo Robotic Arm for Programming
$199.99 19999
$379.98
Product Description Do you want your xArm/xArm 1S robotic arm to achieve AI vision games? Why not upgrade the xArm to ArmPi FPV Raspberry Pi robotic arm with AI vision functions now!
The ArmPi FPV robotic arm can realize Facial Recognition, Color Tracking, Intelligent Stacking, Smart Warehousing and other AI vision recognition functions. Therefore, we have prepared an extension kit for you. This kit includes Raspberry Pi 4B, Raspberry Pi extension board, HD camera, 32G memory card, stand and etc. With this kit only, you can easily upgrade your xArm robotic arm to ArmPi FPV!
Do you want your xArm/xArm 1S robot arm to achieve AI vision games? Why not upgrade it to ArmPi FPV Raspberry Pi robot arm with AI vision functions now!
ArmPi FPV can realize Facial Recognition, Color Tracking, Intelligent Stacking, Smart Warehousing and other AI vision recognition functions. Therefore, we have prepared an extension kit for you. With this kit only, you can easily upgrade your xArm robot arm to ArmPi FPV!
Feature
  • Upgrade your xArm 1S robot arm to ArmPi FPV (Raspberry Pi robot arm) with AI with this extension kit easily
  • Support AI vision games such as Facial Recognition, Color Tracking, Intelligent Stacking, Smart Warehousing and etc
  • Include Raspberry Pi 4B, HD camera
  • Built-in ROS with MoveIt! and inverse kinematics
  • Support PC software, phone App and VNC remote desktop control
  • Provide Python source code and detailed tutorials
Powerful Control System
  • The associated MCU shunts Raspberry Pi workload and reduced resource usage
  • Built-in RGB, buzzer, LED and other response devices
  • Three IIC ports for extension
  • Lead out GPIO pints to your development
  • 4PIN ports are compatible with Hiwonder sensors
Standard & Advanced Kit
Item Specification
Raspberry Pi 4B Processor: Broadcom BCM2711, quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
Memory: 1GB, 2GB or 4GB LPDDR4(depending on model)
Connectivity:
2.4 GHz and 5.0 GHz IEEE 802.11b/g/n/ac wireless
LAN, Bluetooth 5.0, BLE
Gigabit Ethernet
2 × USB 3.0 ports
2 × USB 2.0 ports
GPIO: Standard 40-pin GPIO header(fully backwards-compatible with previous boards)
Video & Sound:
2 × micro HDMI ports (up to 4Kp60 supported)
2-lane MIPI DSI display port
2-lane MIPI CSI camera port
4-pole stereo audio and composite video port
Multimedia:
H.265 (4Kp60 decode)
H.264 (1080p60 decode, 1080p30 encode)
OpenGL ES, 3.0 graphics
SD card support: Micro SD card slot for loading operating system and data storage
Input power:
5V DC via USB-C connector (minimum 3A)
5V DC via GPIO header (minimum 3A)
Power over Ethernet (PoE)–enabled(requires separate PoE HAT)
Environment: Operating temperature 0–50ºC
Raspberry Pi Extension Board The built-in over-current protection of 8 channel PWM port prevents the servo from damage.
Built-in single bus serial electric circuit can directly control the serial servo
Two-channel programmable LED lights, clearly show the working status of the system
Two-channel programmable buttons for more conveniently setting the system
Reserved IIC and UART ports, which can be compatible with various sensors
High-definition wide angle camera Vision angle: 120°
System: windows, Linux, Openwrt
Pixel: 30,000 pixel (640*480)
Connection: USB free drive
Output: Mipeg
Focus method: manually focus adjustment
Package List(Standard Version) 1*Extended base plate
1*Back shell
1*Upper cover
1*Fan metal plate
1*Camera fixing bracket
1*Camera adapter bracket
1*Raspberry Pi board
1*Raspberry Pi extension Board
1*32G memory card
1*Camera
1*Fan
1*Card reader
1*U Disk
3*Block
3* Color block
3*Tag Card
1*Map
1*Tape
10*M2.5*10 Nylon column
10*M2.5*10*6 male to female nylon column
20*M3*6 round head machine screw
5*M4*8 round head machine screw
5*M2*6 round head machine screw
5*M2*4 round head machine screw
10*M2.510 round head machine screw
4*M2*8 copper pillar
4*Suction cup
6*Cable tie
Package List(Advanced Version) 1*Extended base plate
1*Back shell
1*Upper cover
1*Fan metal plate
1*Camera fixing bracket
1*Camera adapter bracket
1*Raspberry Pi board
1*Raspberry Pi extension Board
1*32G memory card
1*Camera
1*Fan
1*Card reader
1*U Disk
3*Block
3* Color block
3*Tag Card
1*Map
1*Tape
10*M2.5*10 Nylon column
10*M2.5*10*6 male to female nylon column
20*M3*6 round head machine screw
5*M4*8 round head machine screw
5*M2*6 round head machine screw
5*M2*4 round head machine screw
10*M2.510 round head machine screw
4*M2*8 copper pillar
4*Suction cup
6*Cable tie
4*Side bracket
4*Support plate
16*L bracket
32*M3*16 flat head machine screw
