Spiderbot: Hiwonder Hexapod Programming Robot for Arduino Standard Version
Spiderbot: Hiwonder Hexapod Programming Robot for Arduino Standard Version
Product Description
Spiderbot is a programmable hexapod robot with 18 DOF. Using the provided Android/iOS APP, it can easily achieve walking, climbing, dancing and etc. With sensor expansion kit version you can carry out the secondary development through Arduino programming. Detailed tutorials and open source are available for your learning.
Feature
Upgraded Back Bracket has expansion holes for sensors on the back.
LED Dot Matrix sensor with 8*16 screen
Glowing Ultrasonic Sensor features accurate measurement and detection with RGB
PC Software Program
Smart Phone APP Control
PS2 Handle Remote Control

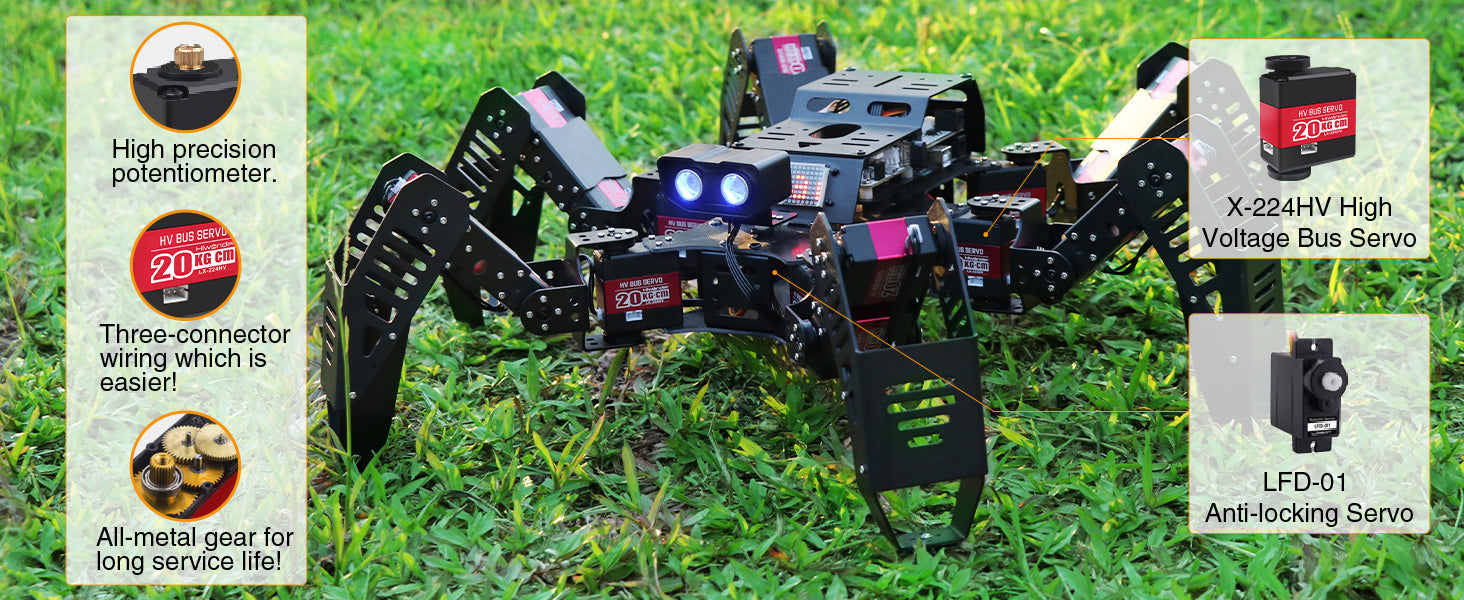

High Voltage Bus Servo
Compared with 7.4V servos, 11.1V high-voltage bus servo reduces current by more than 60%, which improves the robot’s endurance. Less power consumption, longer service time.
Package List of Spiderbot Standard Version (Assembled)
1* Spiderbot body
1* Arduino
1* RGB ultrasonic sensor
1* Accelerometer sensor
4* 4PIN wire
1* 3PIN wire
1* Back bracket
1* Arduino expansion board
1* Arduino USB cable
1* LED dot matrix
1* LFD-01 anti-locking servo
1* Servo accessories Package List of Spiderbot Standard Version (Assembled)
Package List of Spiderbot Standard Version (Assembled) + Sensor Expansion Kit
1* Spiderbot Standard Version (Assembled)
2* Infrared obstacle avoidance sensor
1* Sound sensor
1* Infrared remote controller
1* Touch sensor
1* Infrared receiver
1* Color sensor
6* 4PIN wire Package List of Spiderbot Standard Version (Assembled) + Sensor Expansion Kit
![Hiwonder BBC microbit V2.0 Built-In Speaker &Microphone for micro bit STEM Education]()
![ArmPi: Hiwonder Raspberry Pi 4B AI Vision Robotic Arm/ Python Program]()
![Tonybot: Hiwonder Humanoid Robot Educational Programming Kit/Arduino]()
![xArm2.0: Hiwonder New Intelligent Robotic Arm Support Scratch & Python Assemble Programmable Robotic Kit]()
![H5S: Hiwonder 16DOF Intelligent Humanoid Dancing Robot Supports Entertaimnet Display]()
Spiderbot: Hiwonder Hexapod Programming Robot for Arduino Standard Version
- C/C++ programming language
- Provide open source of Arduino
- Provide PC software and smart phone APP
- Abundant intelligent games, detailed tutorials
- Upgrade luminous ultrasonic sensor
- Hiwonder high voltage bus servos, long service time
- Control methods: wireless handle; smart phone APP; PC software
- Product SKU: HW2019113
- Category: All Products, Arduino, Arduino-1, Hexapod Robot, New Arrivals, Robotics, Robotics
- Order within
Available:
In Stock
$499.99
Product Description
Spiderbot is a programmable hexapod robot with 18 DOF. Using the provided Android/iOS APP, it can easily achieve walking, climbing, dancing and etc. With sensor expansion kit version you can carry out the secondary development through Arduino programming. Detailed tutorials and open source are available for your learning.
Feature
- New glowing ultrasonic sensor with RGB
- Arduino secondary development controller
- Provide open source of Arduino and code with annotations
- 11.1V high-voltage servo can reduce the current by more than 60%
- Compatible with Hiwonder sensors
Upgraded Back Bracket has expansion holes for sensors on the back.
LED Dot Matrix sensor with 8*16 screen
Glowing Ultrasonic Sensor features accurate measurement and detection with RGB
- TTL serial communication
- PS2 handle/Bluetooth module
- Built-in buzzer for low voltage alarm
- Free computer drive, PC graphical debugging
- Manual button program and offline operation
- Compatible with Arduino
- Compatible with Hiwonder sensors
- Chip with high current supply
- Pins with marked number
- Numbered pins
PC Software Program
Smart Phone APP Control
PS2 Handle Remote Control
High Voltage Bus Servo
Compared with 7.4V servos, 11.1V high-voltage bus servo reduces current by more than 60%, which improves the robot’s endurance. Less power consumption, longer service time.
Package List of Spiderbot Standard Version (Assembled)
1* Spiderbot body
1* Arduino
1* RGB ultrasonic sensor
1* Accelerometer sensor
4* 4PIN wire
1* 3PIN wire
1* Back bracket
1* Arduino expansion board
1* Arduino USB cable
1* LED dot matrix
1* LFD-01 anti-locking servo
1* Servo accessories
1* Arduino
1* RGB ultrasonic sensor
1* Accelerometer sensor
4* 4PIN wire
1* 3PIN wire
1* Back bracket
1* Arduino expansion board
1* Arduino USB cable
1* LED dot matrix
1* LFD-01 anti-locking servo
1* Servo accessories
Package List of Spiderbot Standard Version (Assembled)
| Spiderbot body | 1set | Back bracket | 1set |
| Arduino | 1pcs | Arduino expansion board | 1pcs |
| RGB ultrasonic sensor | 1pcs | Arduino USB cable | 1pcs |
| Accelerometer sensor | 1pcs | LED dot matrix | 1pcs |
| 4PIN wire | 4pcs | LFD-01 anti-locking servo | 1pcs |
| 3PIN wire | 1pcs | Servo accessories | 1bag |
Package List of Spiderbot Standard Version (Assembled) + Sensor Expansion Kit
1* Spiderbot Standard Version (Assembled)
2* Infrared obstacle avoidance sensor
1* Sound sensor
1* Infrared remote controller
1* Touch sensor
1* Infrared receiver
1* Color sensor
6* 4PIN wire
2* Infrared obstacle avoidance sensor
1* Sound sensor
1* Infrared remote controller
1* Touch sensor
1* Infrared receiver
1* Color sensor
6* 4PIN wire
Package List of Spiderbot Standard Version (Assembled) + Sensor Expansion Kit
| Spiderbot Standard Version (Assembled) | 1set | Touch sensor | 1set |
| Infrared obstacle avoidance sensor | 2pcs | Infrared receiver | 1pcs |
| Sound sensor | 1pcs | Color sensor | 1pcs |
| Infrared remote controller | 1pcs | 4PIN wire | 6pcs |
Product Description
Spiderbot is a programmable hexapod robot with 18 DOF. Using the provided Android/iOS APP, it can easily achieve walking, climbing, dancing and etc. With sensor expansion kit version you can carry out the secondary development through Arduino programming. Detailed tutorials and open source are available for your learning.
Feature
- New glowing ultrasonic sensor with RGB
- Arduino secondary development controller
- Provide open source of Arduino and code with annotations
- 11.1V high-voltage servo can reduce the current by more than 60%
- Compatible with Hiwonder sensors
Upgraded Back Bracket has expansion holes for sensors on the back.
LED Dot Matrix sensor with 8*16 screen
Glowing Ultrasonic Sensor features accurate measurement and detection with RGB
- TTL serial communication
- PS2 handle/Bluetooth module
- Built-in buzzer for low voltage alarm
- Free computer drive, PC graphical debugging
- Manual button program and offline operation
- Compatible with Arduino
- Compatible with Hiwonder sensors
- Chip with high current supply
- Pins with marked number
- Numbered pins
PC Software Program
Smart Phone APP Control
PS2 Handle Remote Control
High Voltage Bus Servo
Compared with 7.4V servos, 11.1V high-voltage bus servo reduces current by more than 60%, which improves the robot’s endurance. Less power consumption, longer service time.
Package List of Spiderbot Standard Version (Assembled)
1* Spiderbot body1* Arduino
1* RGB ultrasonic sensor
1* Accelerometer sensor
4* 4PIN wire
1* 3PIN wire
1* Back bracket
1* Arduino expansion board
1* Arduino USB cable
1* LED dot matrix
1* LFD-01 anti-locking servo
1* Servo accessories Package List of Spiderbot Standard Version (Assembled)
| Spiderbot body | 1set | Back bracket | 1set |
| Arduino | 1pcs | Arduino expansion board | 1pcs |
| RGB ultrasonic sensor | 1pcs | Arduino USB cable | 1pcs |
| Accelerometer sensor | 1pcs | LED dot matrix | 1pcs |
| 4PIN wire | 4pcs | LFD-01 anti-locking servo | 1pcs |
| 3PIN wire | 1pcs | Servo accessories | 1bag |
Package List of Spiderbot Standard Version (Assembled) + Sensor Expansion Kit
1* Spiderbot Standard Version (Assembled)2* Infrared obstacle avoidance sensor
1* Sound sensor
1* Infrared remote controller
1* Touch sensor
1* Infrared receiver
1* Color sensor
6* 4PIN wire Package List of Spiderbot Standard Version (Assembled) + Sensor Expansion Kit
| Spiderbot Standard Version (Assembled) | 1set | Touch sensor | 1set |
| Infrared obstacle avoidance sensor | 2pcs | Infrared receiver | 1pcs |
| Sound sensor | 1pcs | Color sensor | 1pcs |
| Infrared remote controller | 1pcs | 4PIN wire | 6pcs |

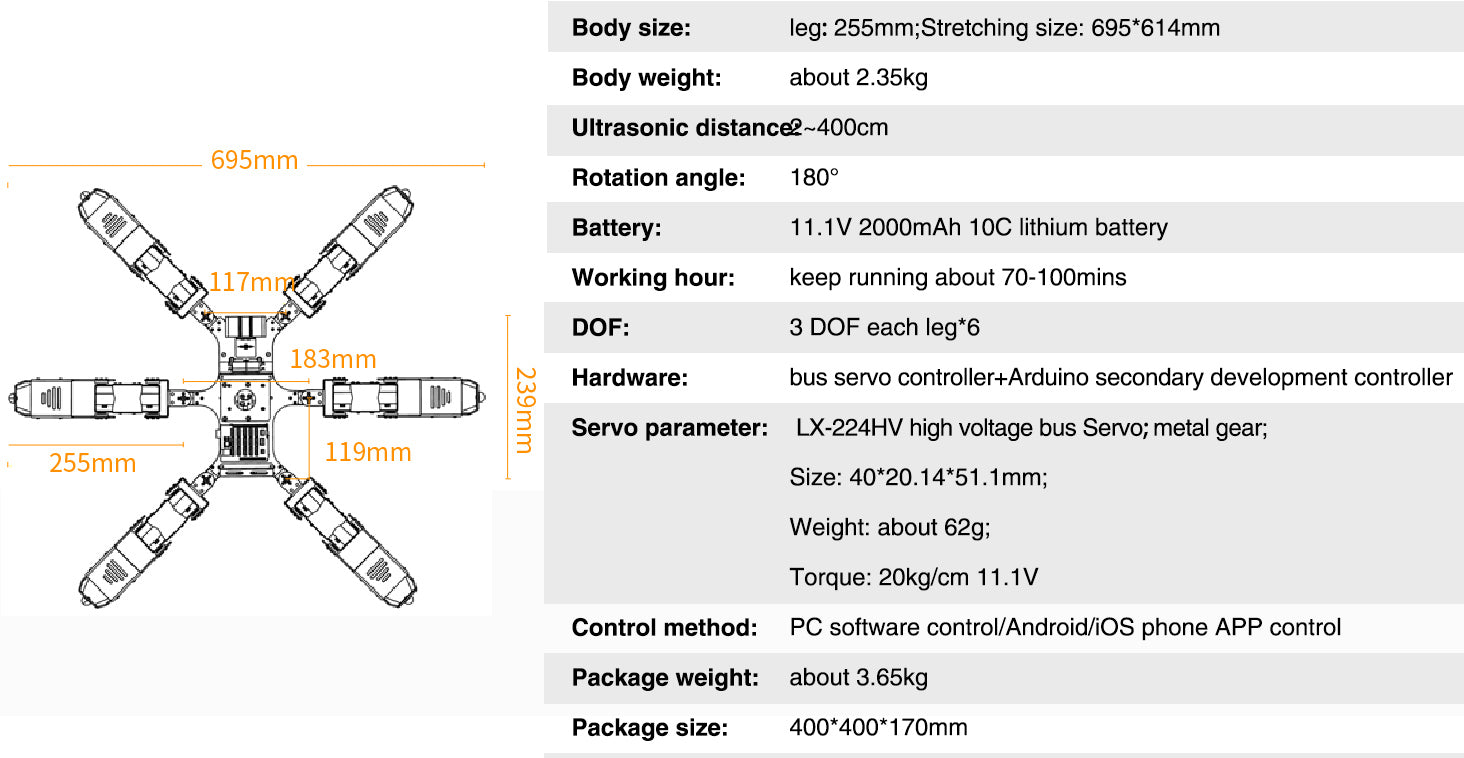

| Item | Specification |
| Spiderbot body size | leg: 255mm; stretching size: 695*614mm |
| Spiderbot body weight | about 2.35kg |
| Spiderbot body material | metal and fiberglass panels |
| Rotation angle | 180° |
| Battery | 11.1V 2000mAh 10C high voltage lithium battery |
| Working hours | keep running about 70-100mins |
| DOF | 3 DOF each leg*6 |
| Hardware | bus servo controller+Arduino secondary development controller |
| Servo parameters | LX-224HV high voltage bus servo; metal gear; weight: about 60g; Torque: 20kg/cm 11.1V |
|
Package List of Spiderbot Standard Version(Assembled ) |
1*Spiderbot body |
| Package List of Spiderbot Standard Version(Assembled )+Sensor Expansion Kit |
1*Spiderbot standard version(Assembled ) |
