Hiwonder LX-16A Full Metal Gear Serial Bus Servo with Real-Time Feedback Function for RC Robot( Control Angle 240)
Rated 3.5/5 based on 11 customer reviews
Hiwonder LX-16A Full Metal Gear Serial Bus Servo with Real-Time Feedback Function for RC Robot( Control Angle 240)

Hiwonder LX-16A Full Metal Gear Serial Bus Servo with Real-Time Feedback Function for RC Robot( Control Angle 240)

  • 17kg large torque. 17 kg/cm (236 oz/in) 6V
  • 19.5 kg/cm (270 oz/in) @7.4V

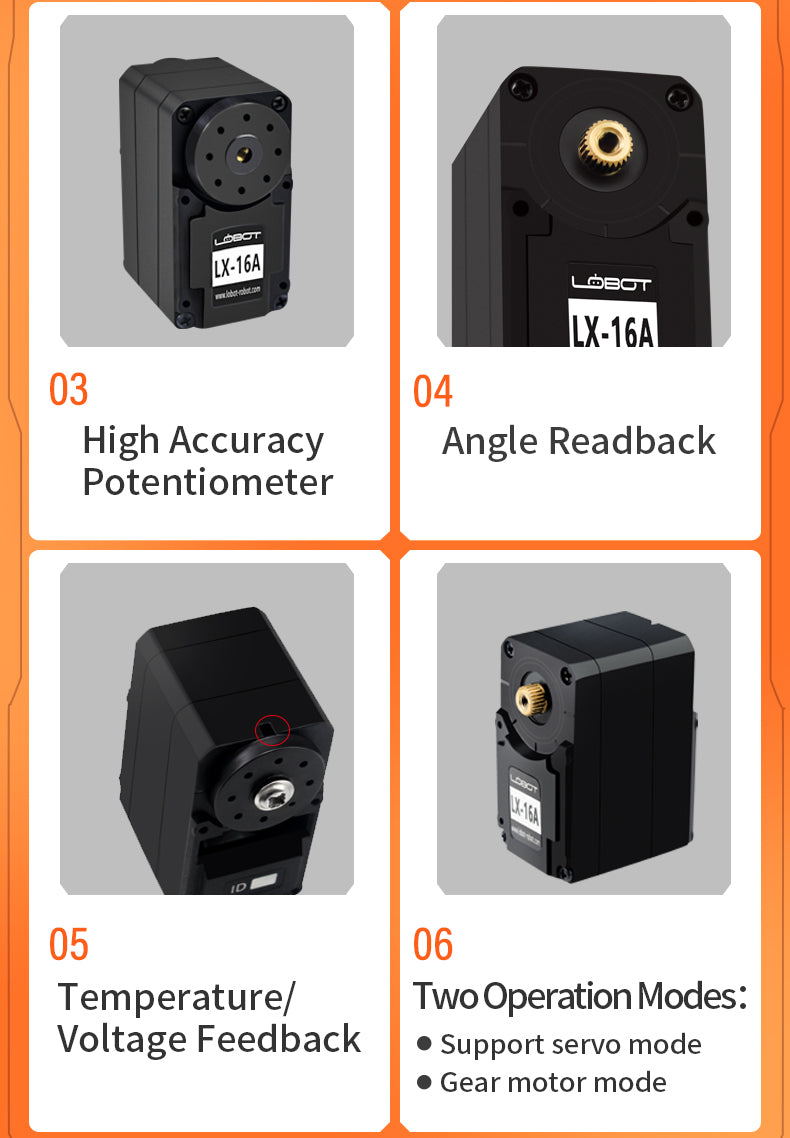

  • Real-time feedback function of position, temperature, voltage
  • Full metal gear
  • Dual ball bearing
  • High-precision potentiometer to feedback the angle position
  • Order within
Available: In Stock
$19.99
Wishlist Compare

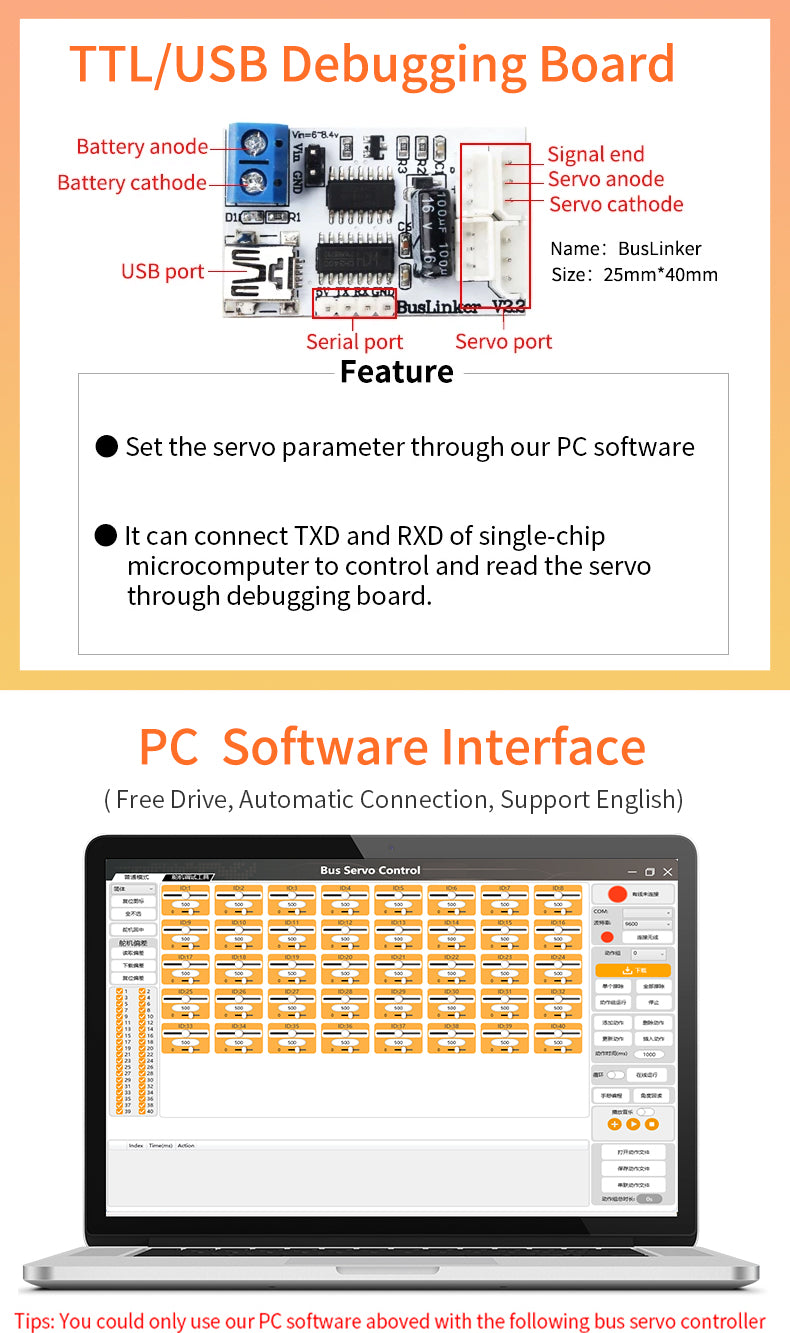

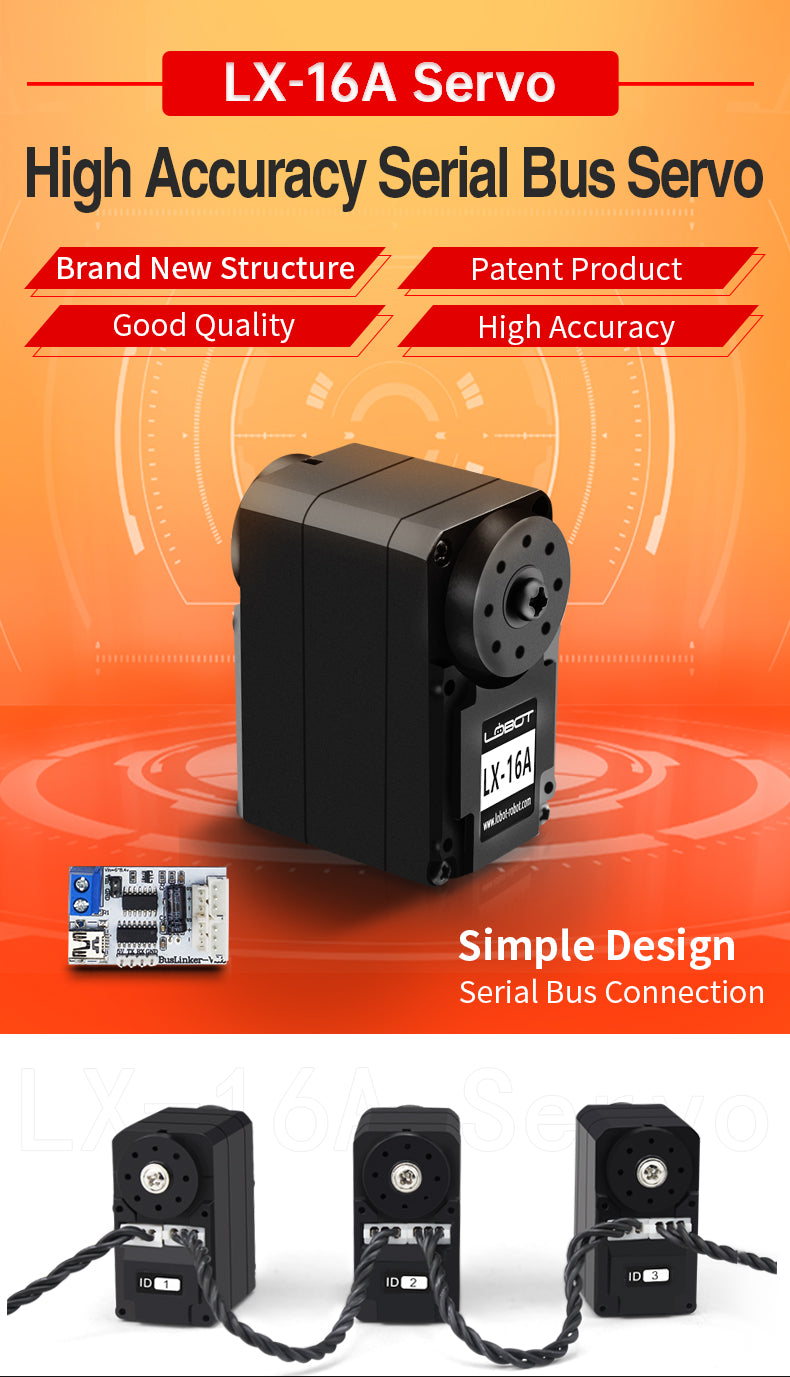

Hiwonder LX-16A is a full metal gear serial bus servo with 17kg high torque. It can provide temperature, position feedback. LX-16A Bus Servo uses our private serial protocol so that it is necessary to use our TTL/USB debug board(compatible for Arduino) to control bus servo.
( Notes: The debug board required to purchase separately from ours. You only need one debug board no matter how many servos you control.)



 Feature

  • 17kg large torque. 17 kg/cm (236 oz/in) @6V; 19.5 kg/cm (270 oz/in) @7.4V. We provide communication protocol and detailed video tutorials.

  • Real-time feedback function of position, temperature, voltage. The top of the servo has a warning The indicator will blink if overcurrent, over-temperature or locked-rotor occurs.

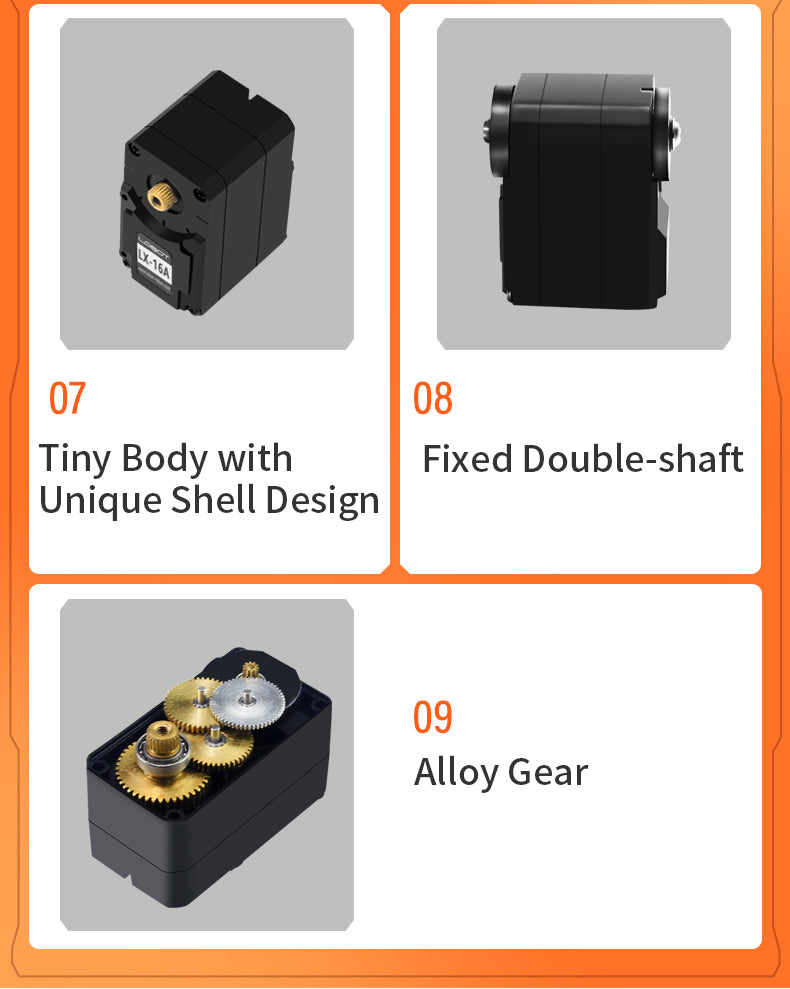

  • Full metal gear. Improve servo’s accuracy and extend its service time.

  • Dual ball bearing: one is the driving ball bearing, the other is the assistant ball bearing(support role).

  • Use high-precision potentiometer in the new design. Accuracy and linearity have been greatly improved! Accurate movement can help you build up robots.

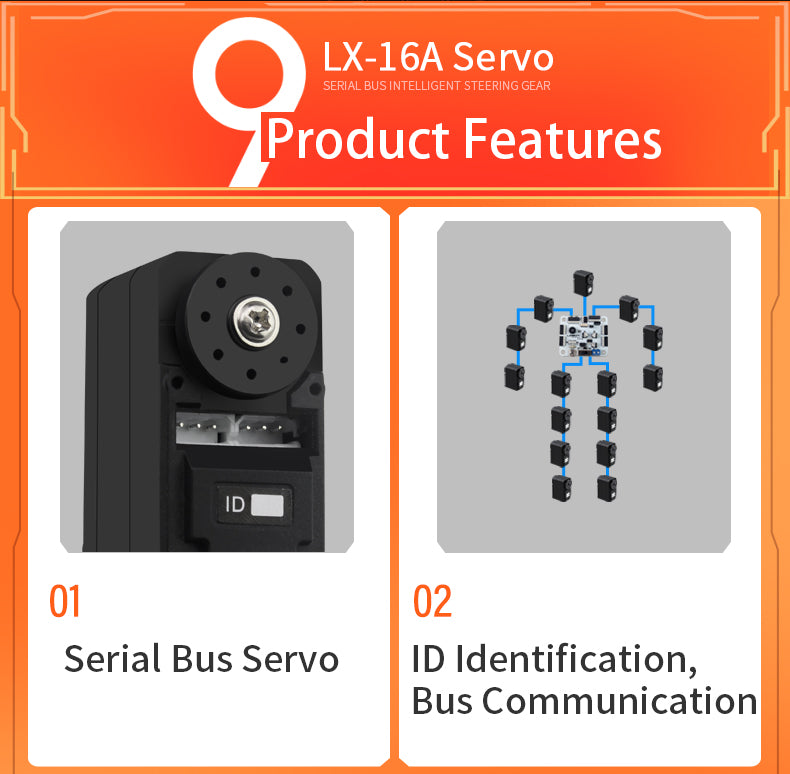

  • The control board uses I/O port to connect the serial servo, servos are connected in series through a dual interface, which reduces the use of serial ports. Simple wiring makes the product more exquisite and attractive.

This product: Hiwonder LX-16A Full Metal Gear Serial Bus Servo with Real-Time Feedback Function for RC Robot( Control Angle 240)
$19.99 1999

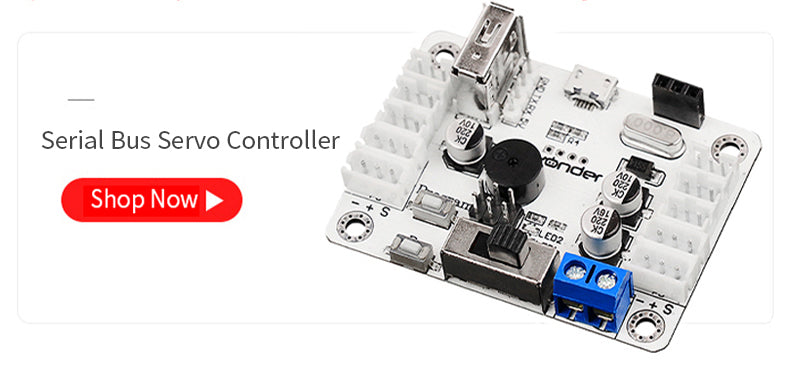

Serial Bus Servo Controller: Hiwonder Serial Bus Servo Controller Communication Tester
$28.99 2899
Hiwonder TTL / USB Debugging Board
$12.99 1299
$61.97
Hiwonder LX-16A is a full metal gear serial bus servo with 17kg high torque. It can provide temperature, position feedback. LX-16A Bus Servo uses our private serial protocol so that it is necessary to use our TTL/USB debug board(compatible for Arduino) to control bus servo.
( Notes: The debug board required to purchase separately from ours. You only need one debug board no matter how many servos you control.)



 Feature

  • 17kg large torque. 17 kg/cm (236 oz/in) @6V; 19.5 kg/cm (270 oz/in) @7.4V. We provide communication protocol and detailed video tutorials.

  • Real-time feedback function of position, temperature, voltage. The top of the servo has a warning The indicator will blink if overcurrent, over-temperature or locked-rotor occurs.

  • Full metal gear. Improve servo’s accuracy and extend its service time.

  • Dual ball bearing: one is the driving ball bearing, the other is the assistant ball bearing(support role).

  • Use high-precision potentiometer in the new design. Accuracy and linearity have been greatly improved! Accurate movement can help you build up robots.

  • The control board uses I/O port to connect the serial servo, servos are connected in series through a dual interface, which reduces the use of serial ports. Simple wiring makes the product more exquisite and attractive.

Item

Specification

Weight

54g(1.90oz)

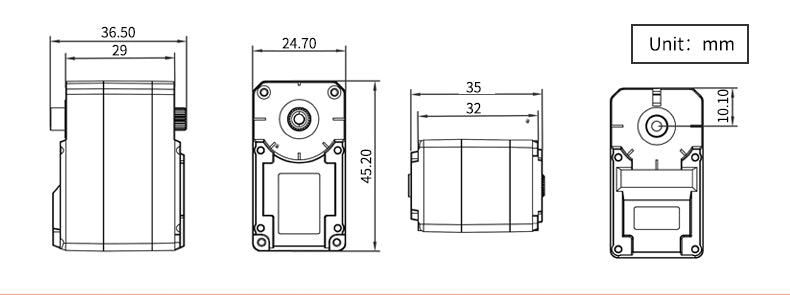

Dimension

45.22mmx24.72mmx36.3mm(1.78inch*0.97inch*1.38inch)

Speed

0.19sec/60°@7.4V

Servo Accuracy

0.3°

Torque

17 kg/cm (236 oz/in) @6V; 19.5 kg/cm (270 oz/in) @7.4V

Minimum Working Current

1A

No-load Current

100mA

Stall Current

2.4~3A

Cornor Range Control

0~1000 correspond to 0°~240°

Serial Command Control Method

serial command

Communication Baud Rate

115200

Servo ID

0~253,user configurable,default ID 1

Data Feedback

Temperature; voltage; location

Save Setting

Save data when the power off

Features  Stall protection

Overheat Protection

Supporting Readback Function

support

Indicator

Blue LED

Supporting Line Length

20cm, optional other line length

Package List

1* bus servo
2* servo horn
1* main screw
1* deputy screw
15* M2*4 self-tapping screw
1* 20cm(7.87inch) servo Wire

Important Notes

  • Please make sure to avoid locked-rotor when using a servo, because it may burn out in the using process.

  • The locked-rotor will cause internal current increase to more than 7 times as well as the temperature.
