Hiwonder Electrical Conveyor Belt/ Adjustable Speed and Moving Direction
- Adjustable Speed and Moving Direction
- Compatible with Hiwonder Robotic Arm
- Product SKU: HW2019120
- Category: Accessory, All Products, Conveyor belt & Sliding rail, New Arrivals
- Order within
Available:
In Stock
$499.99
Product Description
Hiwonder electrical conveyor belt can combine with robotic arm to build a production line, which enables you to create a mini workshop at home. Its speed and moving direction is adjustable for your preference.
Conveyor Belt Features
- Max load: 500g
- Effective length: 694mm
- Max speed: 50mm/s
- Net weight: 3.5kg
- Size: 710 * 227 * 67mm
- Size includes package: 777 * 297 * 112mm
Motor Features
- Motor voltage DC: 12V
- Reduction speed ratio: 1:70
- Wheelbase: 27mm
- Shaft diameter: 8mm
- Motor: 58 * 36mm
- Retarder: 60 * 120mm
- Shaft rotation: CW, CCW (dual direction rotation)
Conveyor Belt Introduction
Dimension Drawing

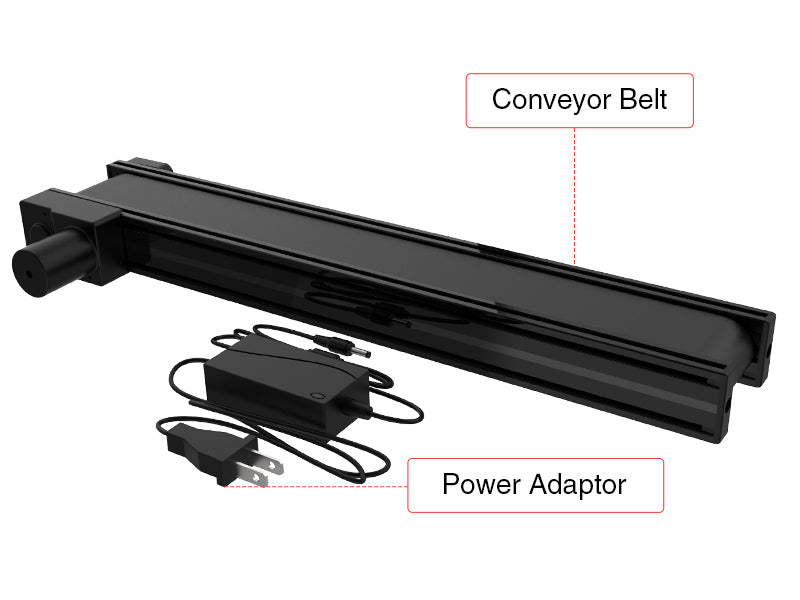

Packing List:
1 * Conveyor belt
1 * Power adaptor
Product Description
Hiwonder electrical conveyor belt can combine with robotic arm to build a production line, which enables you to create a mini workshop at home. Its speed and moving direction is adjustable for your preference.
Conveyor Belt Features
Conveyor Belt Introduction
Dimension Drawing
Packing List:
1 * Conveyor belt
1 * Power adaptor
- Max load: 500g
- Effective length: 694mm
- Max speed: 50mm/s
- Net weight: 3.5kg
- Size: 710 * 227 * 67mm
- Size includes package: 777 * 297 * 112mm
- Motor voltage DC: 12V
- Reduction speed ratio: 1:70
- Wheelbase: 27mm
- Shaft diameter: 8mm
- Motor: 58 * 36mm
- Retarder: 60 * 120mm
- Shaft rotation: CW, CCW (dual direction rotation)
Conveyor Belt Introduction
Dimension Drawing
Packing List:
1 * Conveyor belt
1 * Power adaptor
| Item | Specification |
| Conveyor Belt | Max Load 500g Effective Length 694mm Max Speed 50mm/s Net Weight 3.5kg Product Dimension 710*257*67(mm) Product Dimension (Includes Package) 80*32*14(cm) |
| Motor Specs | Motor voltage：DC: 12V Reduction speed ratio: 1:70 Wheelbase: 27mm Shaft diameter: 8mm Motor: 58*36mm Retarder: 60*120mm Shaft Rotation: CW, CCW(Dual Direction Rotation) |
